CM-UCF312D1-

Designations

CM-UCF312D1

Included products

Bearing	UC312D1		Bearing
Housing	F312D1		Housing

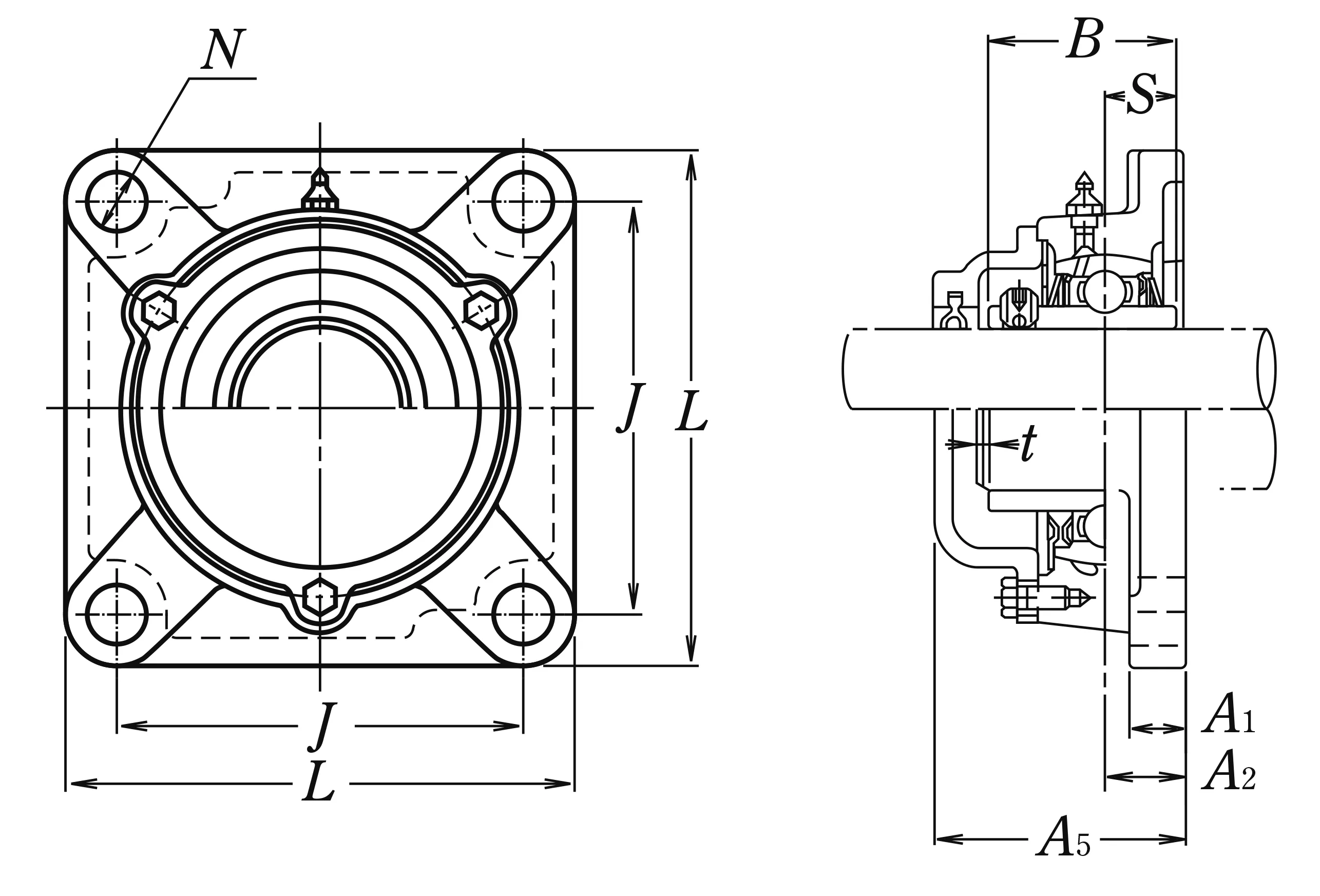

Nominal Dimensions

d	60	mm	Bore diameter
L	195	mm	Overall length
J	150	mm	Distance between attachment bolts
N	23	mm	Diameter of attachment bolt hole
A2	33	mm	Flange width
A1	22	mm	Flange width
A5	100	mm	Width including end cover
A0	78	mm	Overall width
B,B1,B2	71	mm	Width of inner ring
t	4	mm	Clearance
S	26	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	82	kN	Basic dynamic load rating
C0r	52	kN	Basic static load rating

Mass

mass

7.8

kg

Mass approx.
