UCFS311D1-

Designations

UCFS311D1

Included products

Bearing	UC311D1		Bearing
Housing	FS311D1		Housing

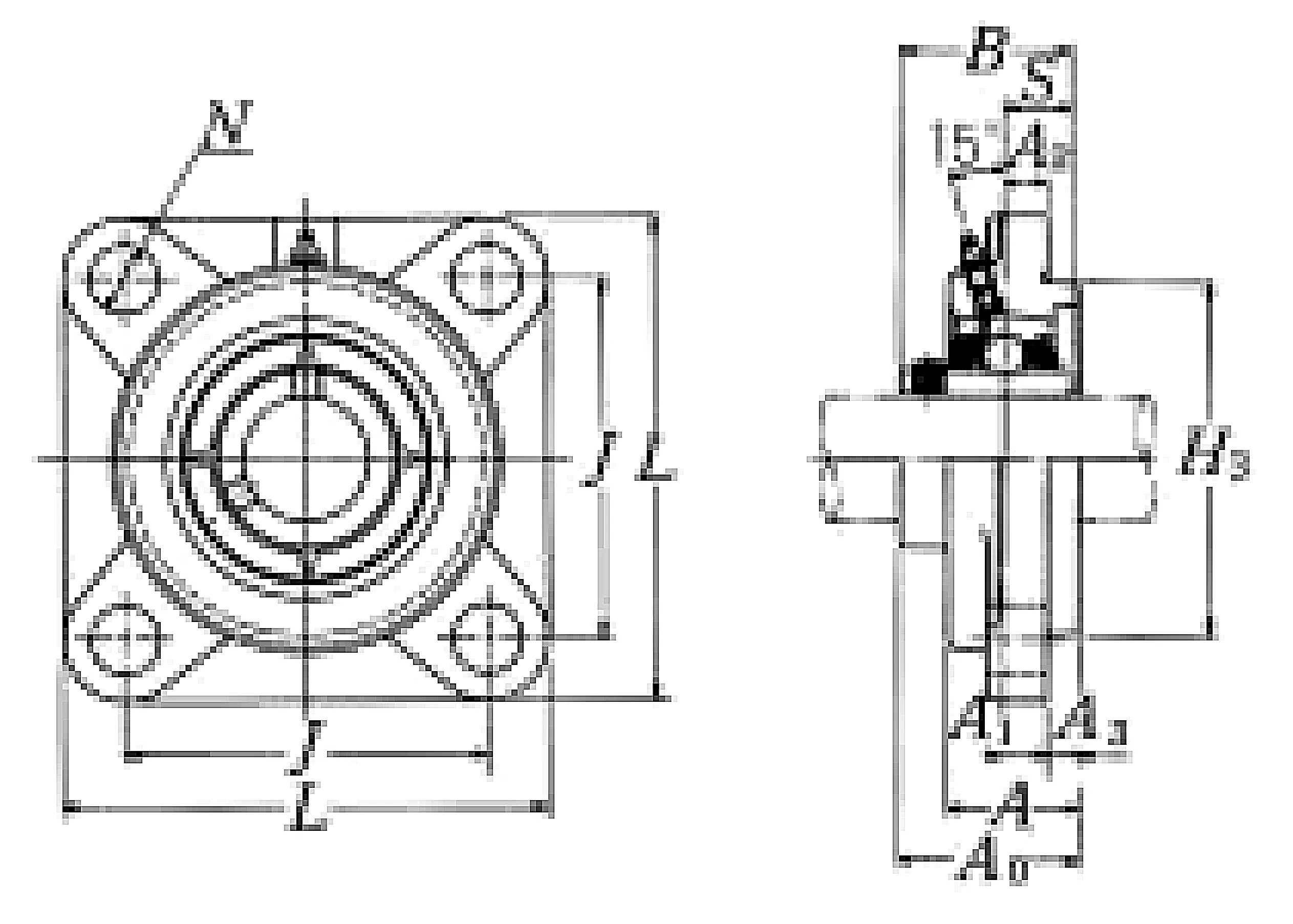

Nominal Dimensions

d	55	mm	Bore diameter
L	185	mm	Overall length
H3	150	mm	Outer diameter of Spigot Joint
J	140	mm	Distance between attachment bolts
A3	13	mm	Height of of Spigot Joint
A2	17	mm	Flange width
A1	20	mm	Flange width
A	52	mm	Base width
A0	71	mm	Overall width
B,B1,B2	66	mm	Width of inner ring
S	25	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	71.5	kN	Basic dynamic load rating
C0r	45	kN	Basic static load rating

Mass

mass

5.9

kg

Mass approx.
