CM-UCF311D1-

Designations

CM-UCF311D1

Included products

Bearing	UC311D1		Bearing
Housing	F311D1		Housing

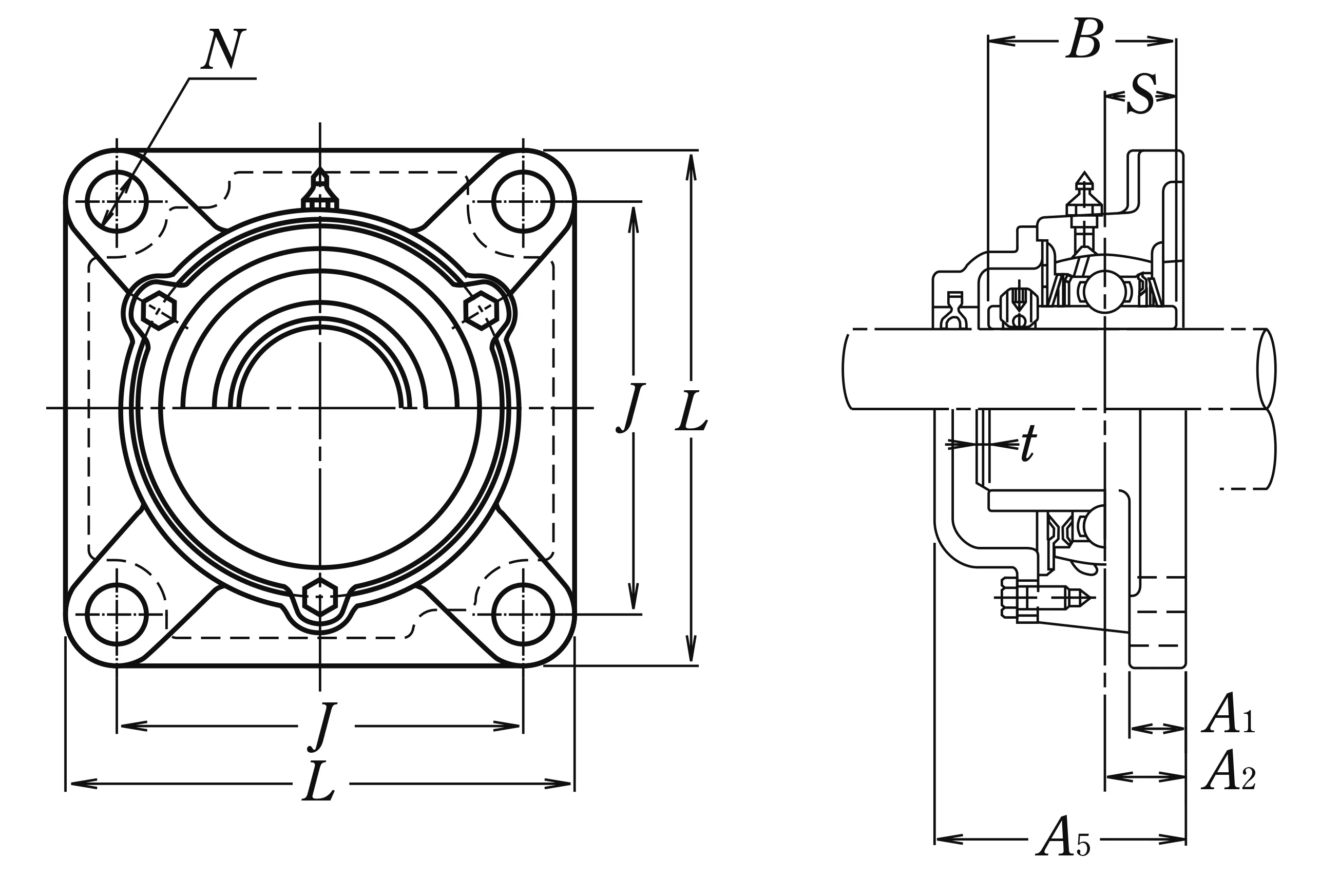

Nominal Dimensions

d	55	mm	Bore diameter
L	185	mm	Overall length
J	140	mm	Distance between attachment bolts
N	23	mm	Diameter of attachment bolt hole
A2	30	mm	Flange width
A1	20	mm	Flange width
A5	92	mm	Width including end cover
A0	71	mm	Overall width
B,B1,B2	66	mm	Width of inner ring
t	4	mm	Clearance
S	25	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	71.5	kN	Basic dynamic load rating
C0r	45	kN	Basic static load rating

Mass

mass

6.7

kg

Mass approx.
