UKF212D1-

Designations

UKF212D1

Included products

Bearing	UK212D1		Bearing
Housing	F212D1		Housing

Associated products

Adapter sleeve

H2312X

Adapter sleeve

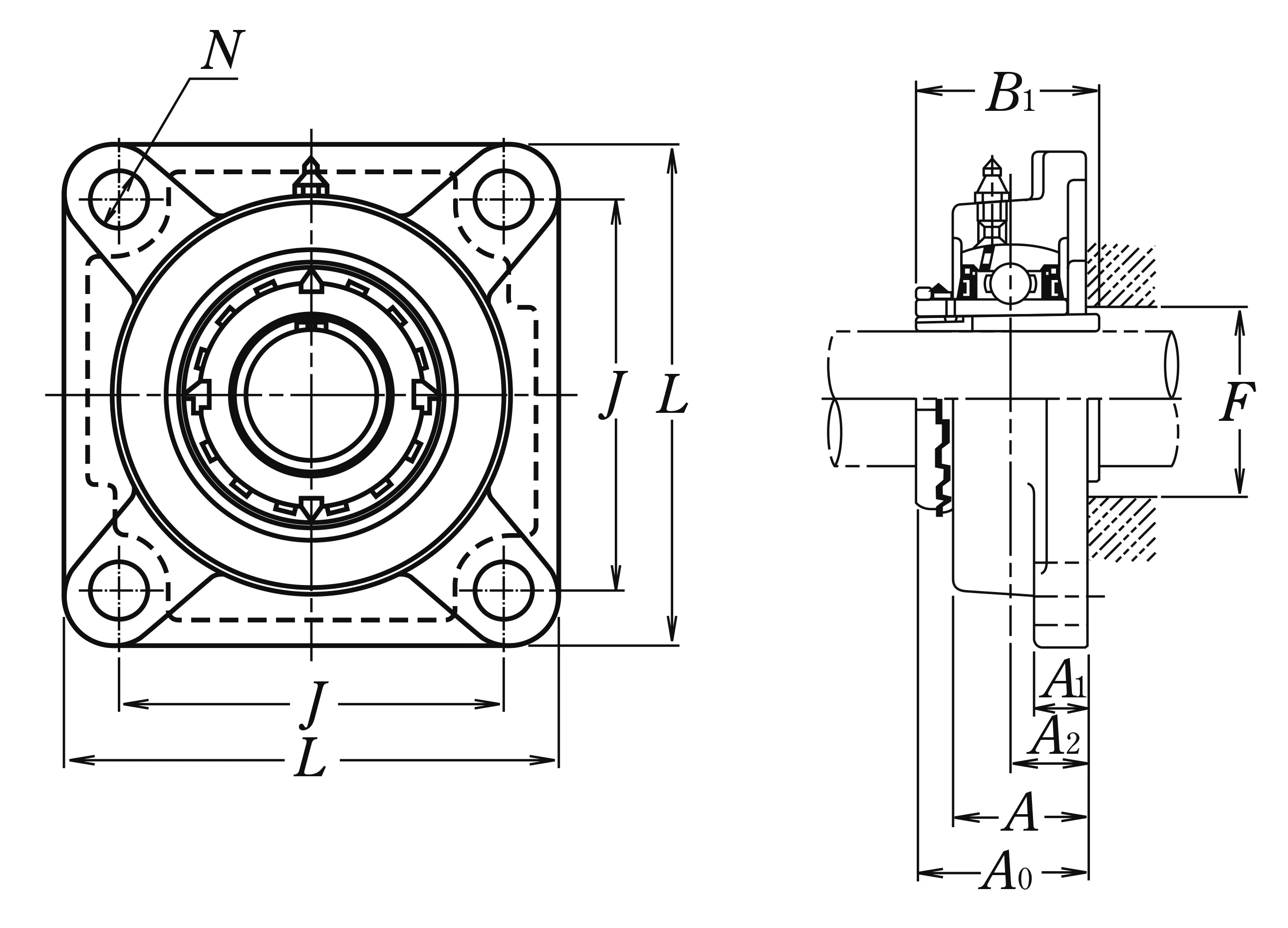

Nominal Dimensions

d	55	mm	Bore diameter
L	175	mm	Overall length
J	143	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A2	29	mm	Flange width
A1	18	mm	Flange width
A	48	mm	Base width
A0	61	mm	Overall width
B,B1,B2	62	mm	Width of inner ring
F	69	mm	Diameter of housing abutment

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	52.5	kN	Basic dynamic load rating
C0r	36	kN	Basic static load rating

Mass

mass

4

kg

Mass approx.
