C-UKF211D1-

Designations

C-UKF211D1

Included products

Bearing	UK211D1		Bearing
Housing	F211D1		Housing

Associated products

Adapter sleeve

H2311X

Adapter sleeve

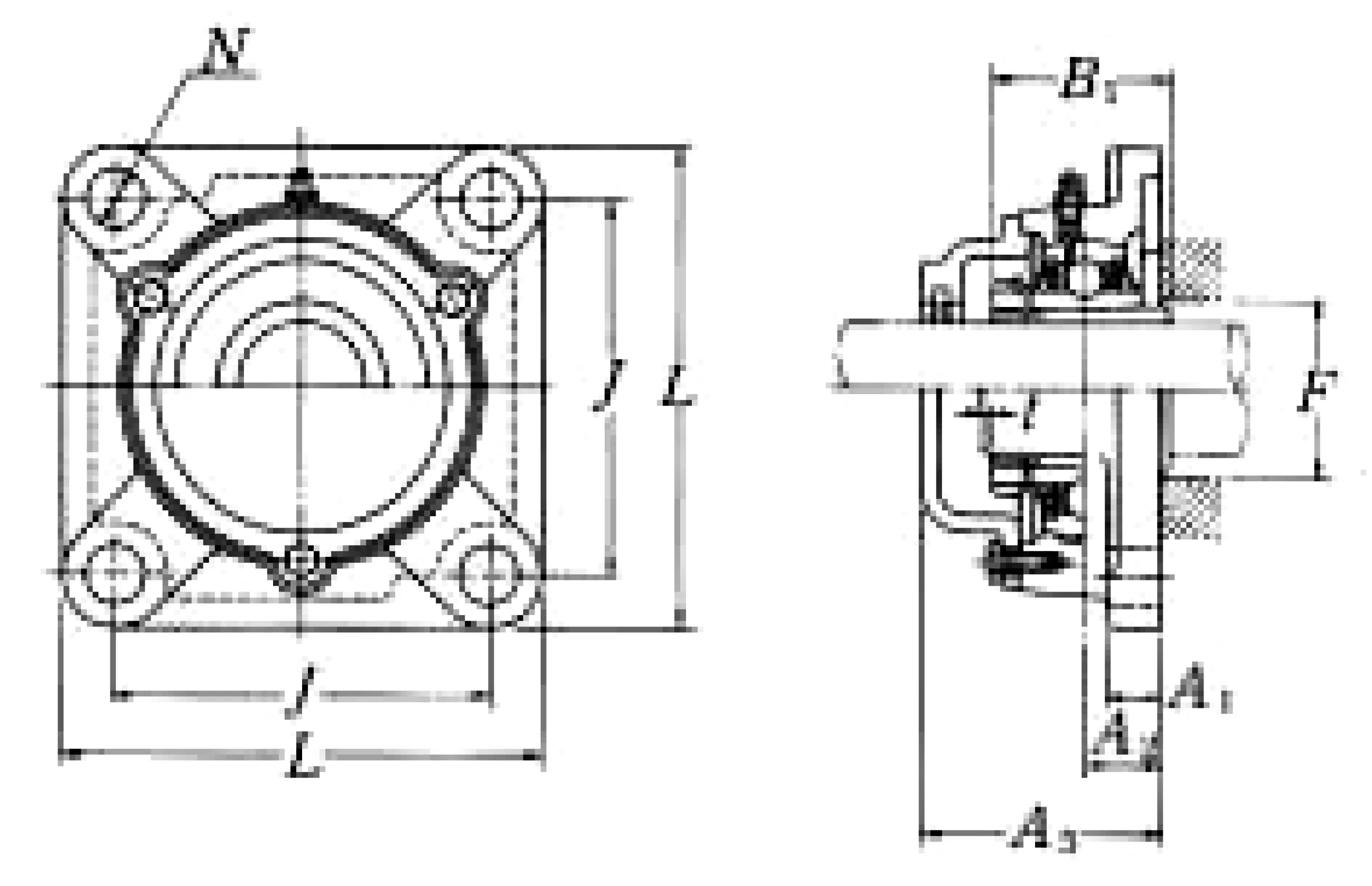

Nominal Dimensions

d	50	mm	Bore diameter
L	162	mm	Overall length
J	130	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A2	25	mm	Flange width
A1	18	mm	Flange width
A5	75	mm	Width including end cover
A0	54.5	mm	Overall width
B,B1,B2	59	mm	Width of inner ring
F	64	mm	Diameter of housing abutment
t	4	mm	Clearance

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	43.5	kN	Basic dynamic load rating
C0r	29.2	kN	Basic static load rating

Mass

mass

4.3

kg

Mass approx.
