UELFU209D1-

Designations

UELFU209D1

Included products

Bearing	UEL209D1		Bearing
Housing	FU209D1		Housing

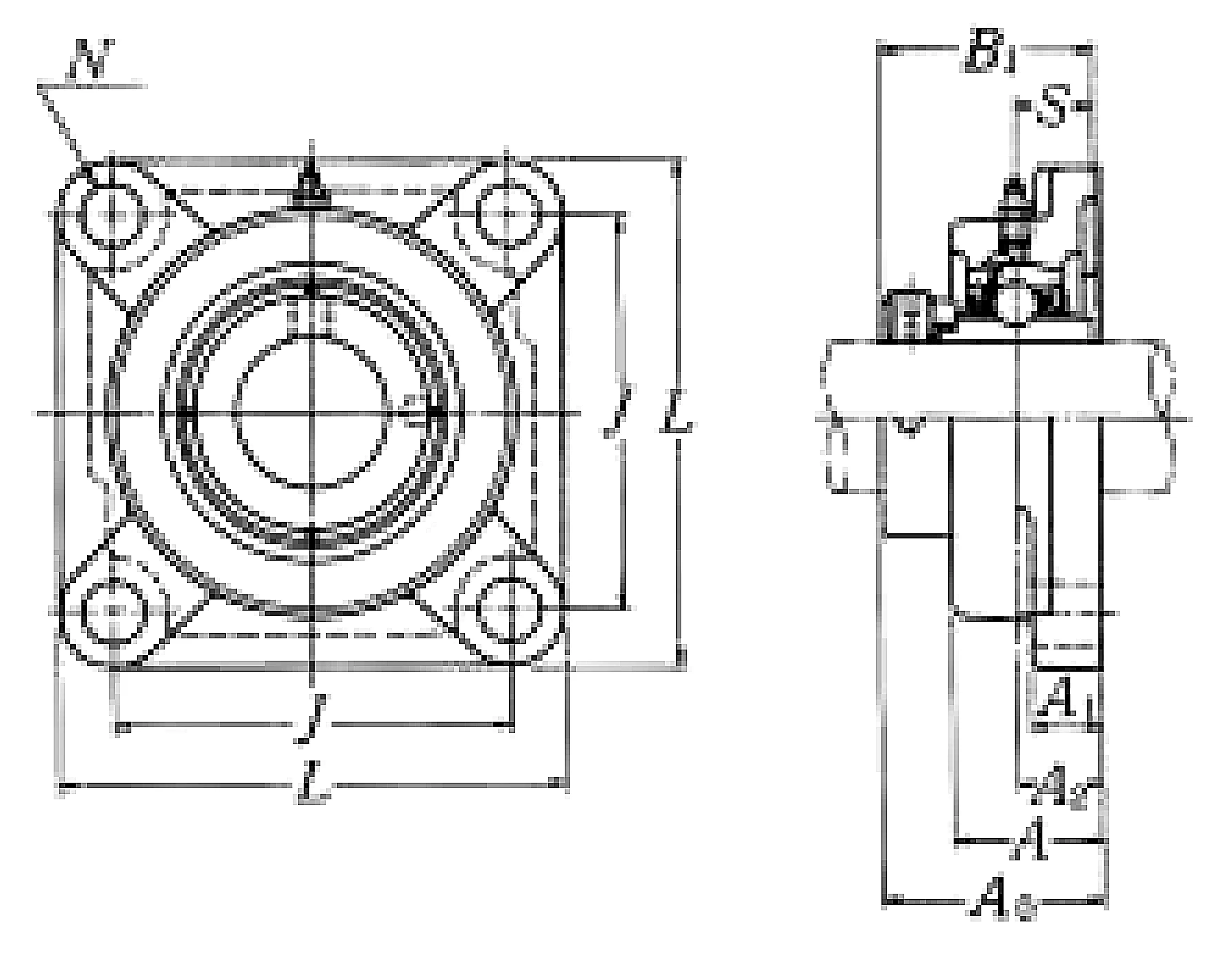

Nominal Dimensions

d	45	mm	Bore diameter
L	137	mm	Overall length
J	105	mm	Distance between attachment bolts
N	16	mm	Diameter of attachment bolt hole
A2	24	mm	Flange width
A1	18	mm	Flange width
A	40	mm	Base width
A0	58.9	mm	Overall width
B,B1,B2	56.3	mm	Width of inner ring
S	21.4	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	32.5	kN	Basic dynamic load rating
C0r	20.4	kN	Basic static load rating

Mass

mass

2.4

kg

Mass approx.
