CM-UKF309D1-

Designations

CM-UKF309D1

Included products

Bearing	UK309D1		Bearing
Housing	F309D1		Housing

Associated products

Adapter sleeve

H2309X

Adapter sleeve

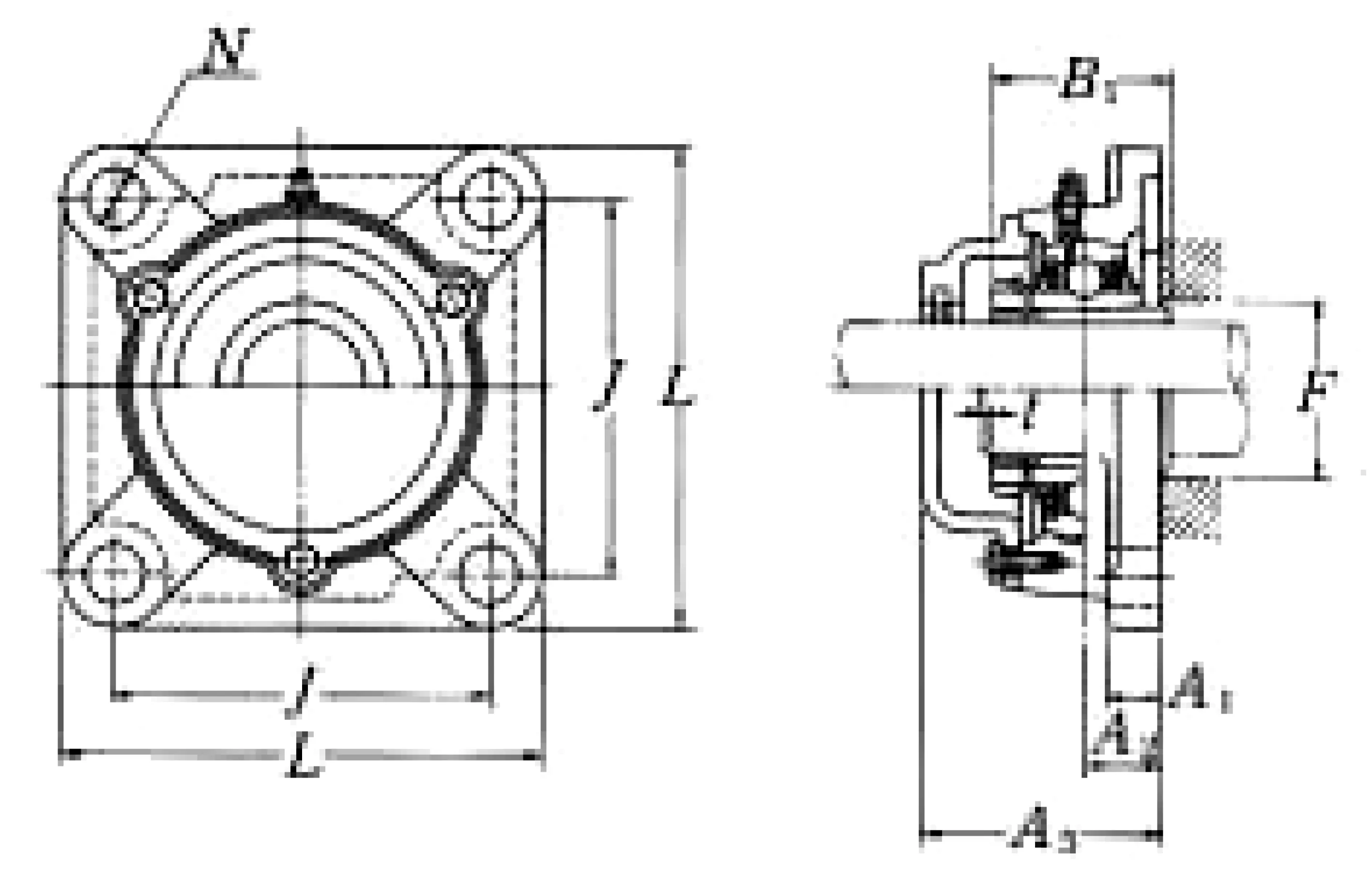

Nominal Dimensions

d	40	mm	Bore diameter
L	160	mm	Overall length
J	125	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A2	25	mm	Flange width
A1	18	mm	Flange width
A5	80	mm	Width including end cover
A0	54.5	mm	Overall width
B,B1,B2	50	mm	Width of inner ring
t	3	mm	Clearance

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	53	kN	Basic dynamic load rating
C0r	32	kN	Basic static load rating

Mass

mass

4.4

kg

Mass approx.
