UCFS308D1-

Designations

UCFS308D1

Included products

Bearing	UC308D1		Bearing
Housing	FS308D1		Housing

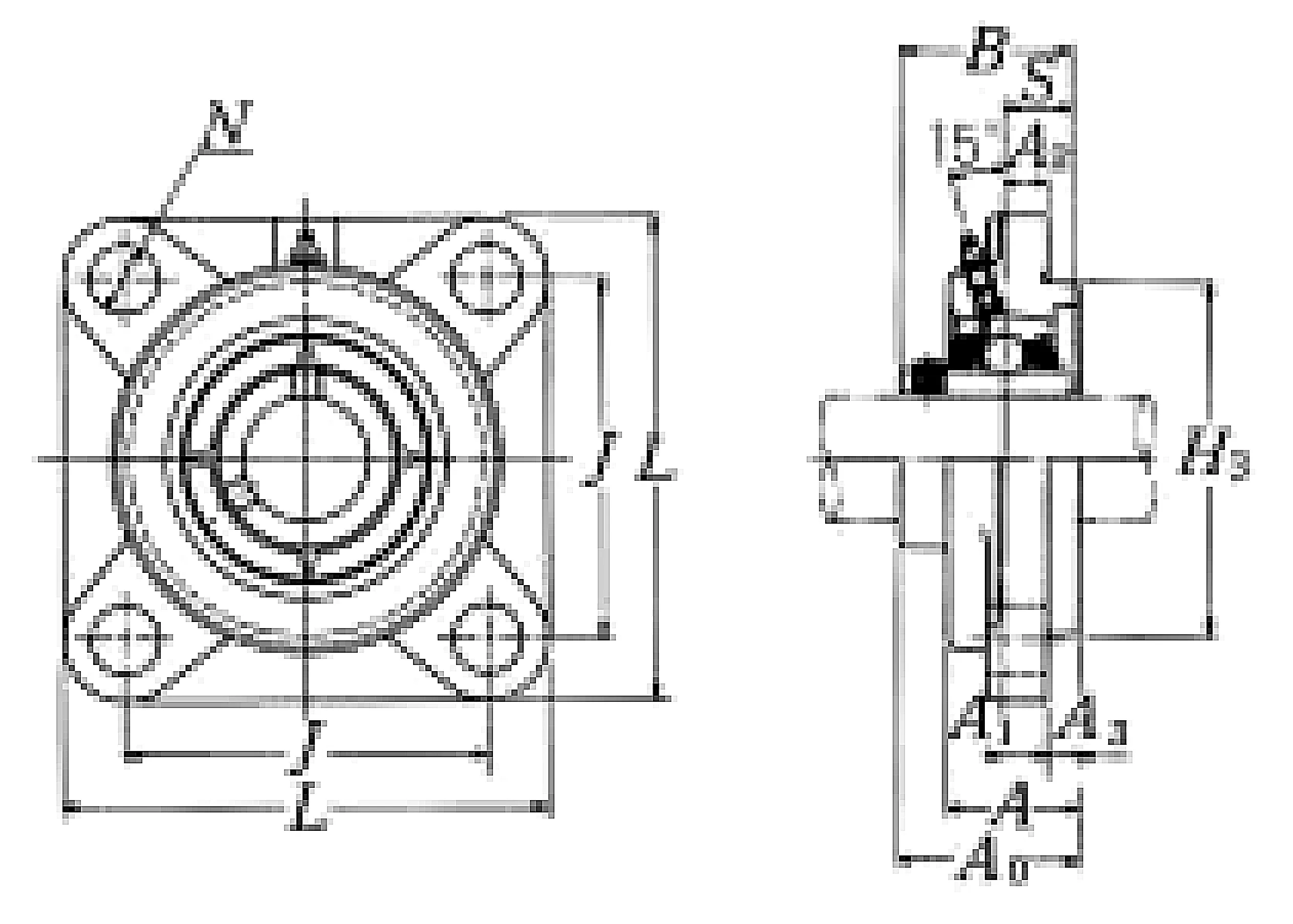

Nominal Dimensions

d	40	mm	Bore diameter
L	150	mm	Overall length
H3	115	mm	Outer diameter of Spigot Joint
J	112	mm	Distance between attachment bolts
A3	10	mm	Height of of Spigot Joint
A2	13	mm	Flange width
A1	17	mm	Flange width
A	40	mm	Base width
A0	56	mm	Overall width
B,B1,B2	52	mm	Width of inner ring
S	19	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	40.5	kN	Basic dynamic load rating
C0r	24	kN	Basic static load rating

Mass

mass

3.1

kg

Mass approx.
