UKFS305D1-

Designations

UKFS305D1

Included products

Bearing	UK305D1		Bearing
Housing	FS305D1		Housing

Associated products

Adapter sleeve

H2305X

Adapter sleeve

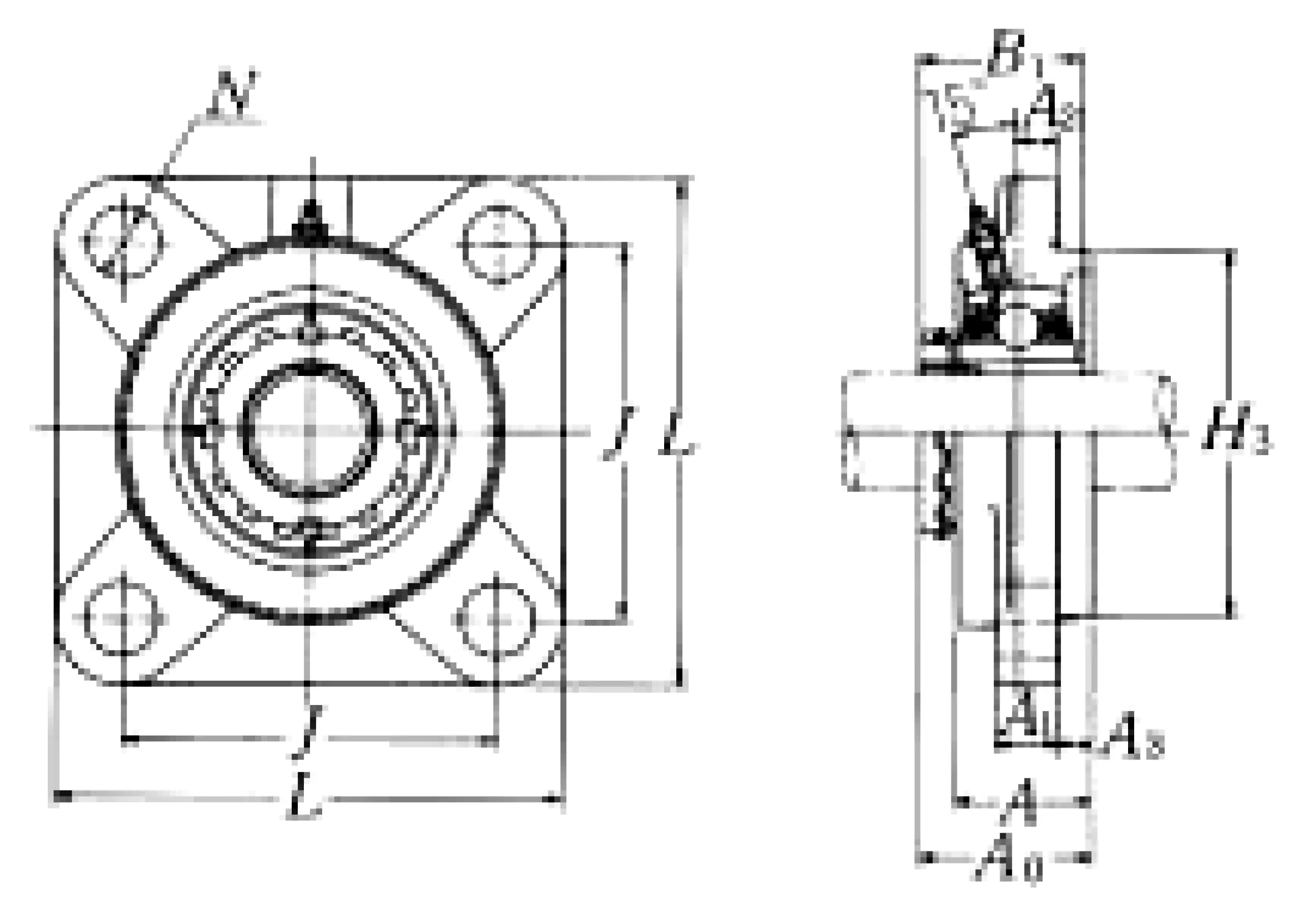

Nominal Dimensions

d	20	mm	Bore diameter
L	110	mm	Overall length
H3	80	mm	Outer diameter of Spigot Joint
J	80	mm	Distance between attachment bolts
A3	7	mm	Height of of Spigot Joint
A2	9	mm	Flange width
A1	13	mm	Flange width
A	29	mm	Base width
A0	37	mm	Overall width
B,B1,B2	35	mm	Width of inner ring

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	21.2	kN	Basic dynamic load rating
C0r	10.9	kN	Basic static load rating

Mass

mass

1.2

kg

Mass approx.
