CM-UKF305D1-

Designations

CM-UKF305D1

Included products

Bearing	UK305D1		Bearing
Housing	F305D1		Housing

Associated products

Adapter sleeve

H2305X

Adapter sleeve

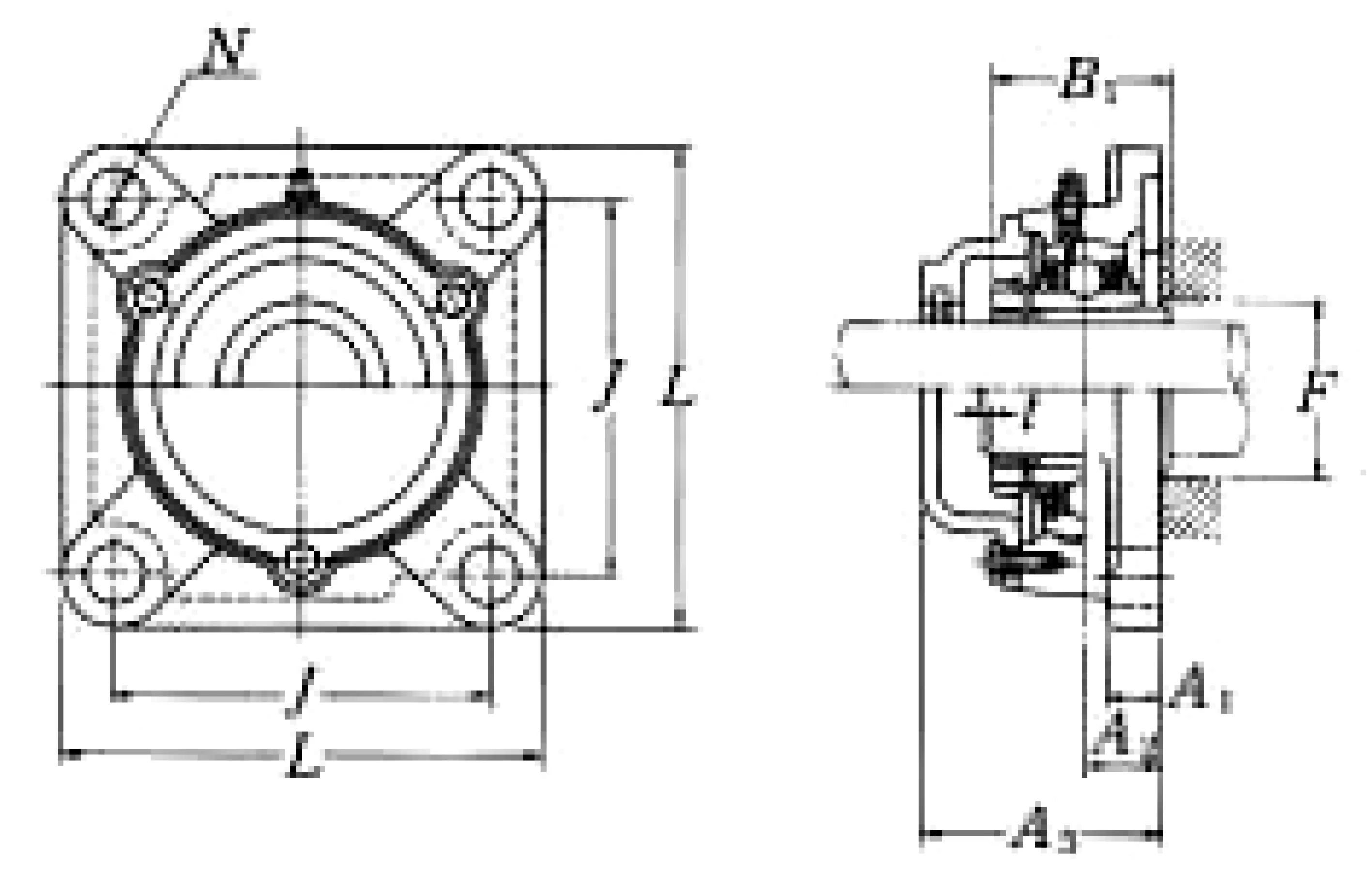

Nominal Dimensions

d	20	mm	Bore diameter
L	110	mm	Overall length
J	80	mm	Distance between attachment bolts
N	16	mm	Diameter of attachment bolt hole
A2	16	mm	Flange width
A1	13	mm	Flange width
A5	56	mm	Width including end cover
A0	37	mm	Overall width
B,B1,B2	35	mm	Width of inner ring
F	30	mm	Diameter of housing abutment
t	2	mm	Clearance

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	21.2	kN	Basic dynamic load rating
C0r	10.9	kN	Basic static load rating

Mass

mass

1.5

kg

Mass approx.
