C-UKFX05D1-

Designations

C-UKFX05D1

Included products

Bearing	UKX05D1		Bearing
Housing	FX05D1		Housing

Associated products

Adapter sleeve

H2305X

Adapter sleeve

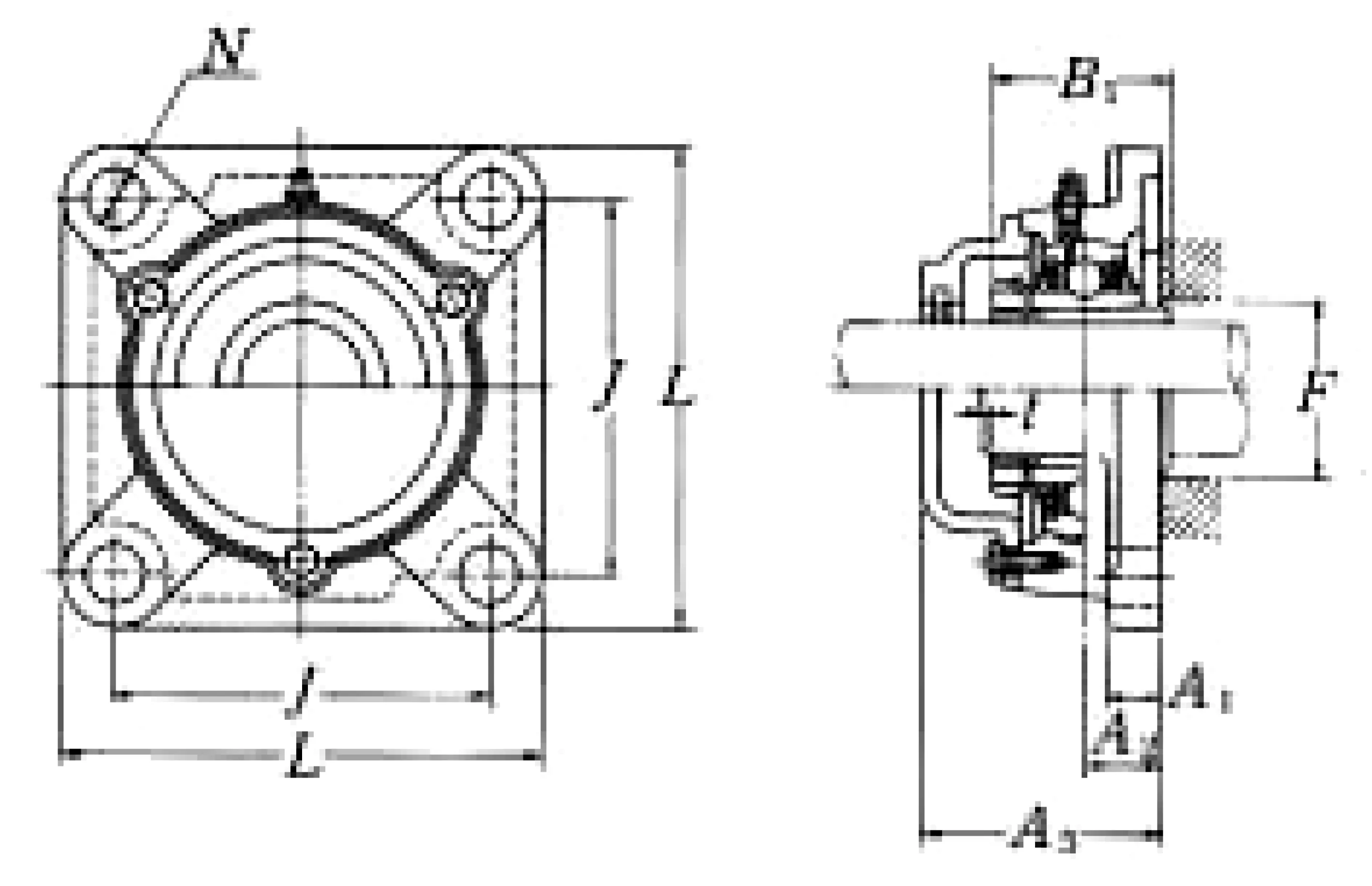

Nominal Dimensions

d	20	mm	Bore diameter
L	108	mm	Overall length
J	83	mm	Distance between attachment bolts
N	12	mm	Diameter of attachment bolt hole
A2	18	mm	Flange width
A1	13	mm	Flange width
A5	56	mm	Width including end cover
A0	39	mm	Overall width
B,B1,B2	35	mm	Width of inner ring
t	2	mm	Clearance

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

1.3

kg

Mass approx.
