UELFU204D1-

Designations

UELFU204D1

Included products

Bearing	UEL204D1		Bearing
Housing	FU204D1		Housing

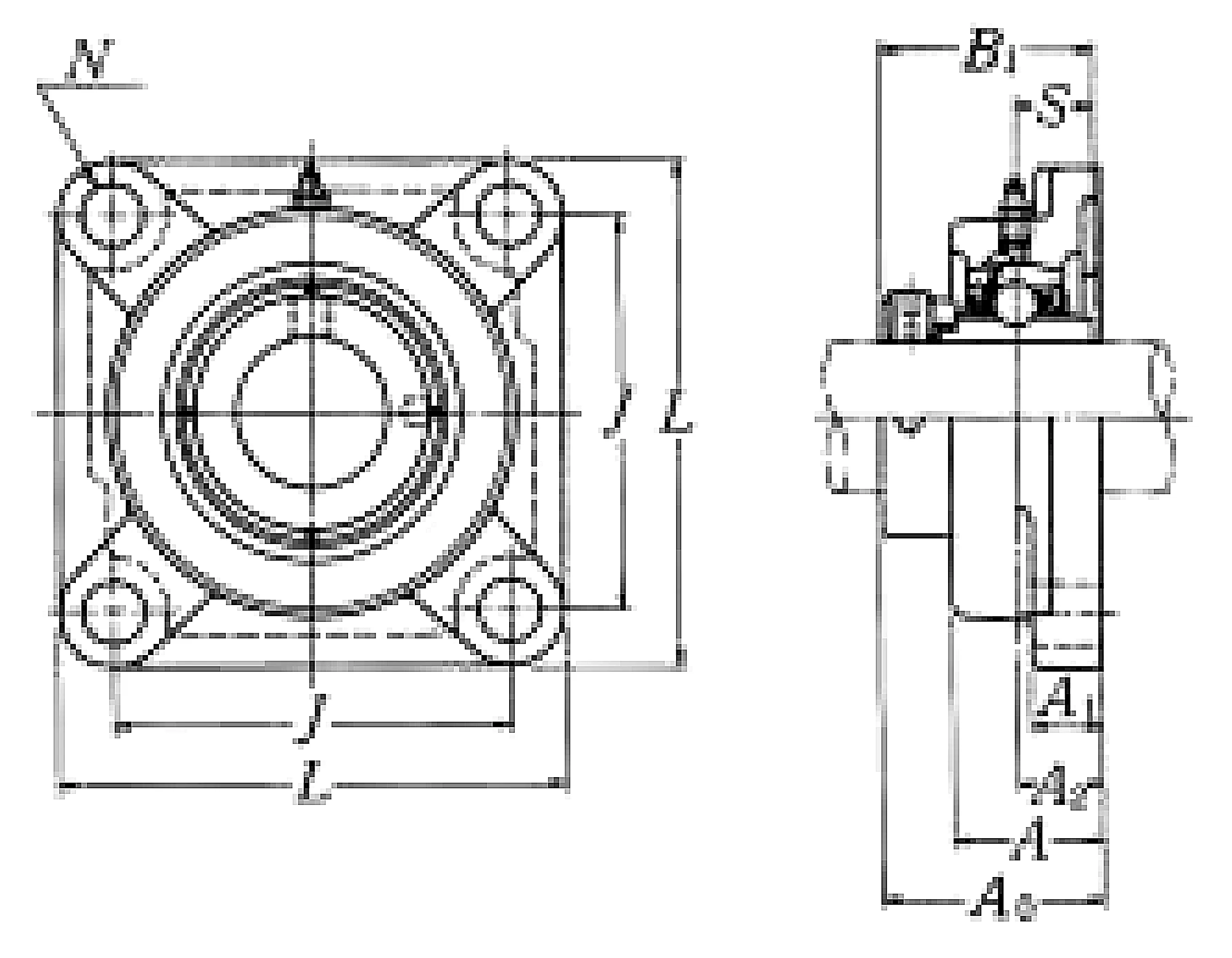

Nominal Dimensions

d	20	mm	Bore diameter
L	86	mm	Overall length
J	63.5	mm	Distance between attachment bolts
N	11.5	mm	Diameter of attachment bolt hole
A2	19	mm	Flange width
A1	15	mm	Flange width
A	29.5	mm	Base width
A0	45.6	mm	Overall width
B,B1,B2	43.7	mm	Width of inner ring
S	17.1	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.8

kg

Mass approx.
