UKIP328D1-

Designations

UKIP328D1

Included products

Bearing	UK328D1		Bearing
Housing	IP328D1		Housing

Associated products

Adapter sleeve

H2328

Adapter sleeve

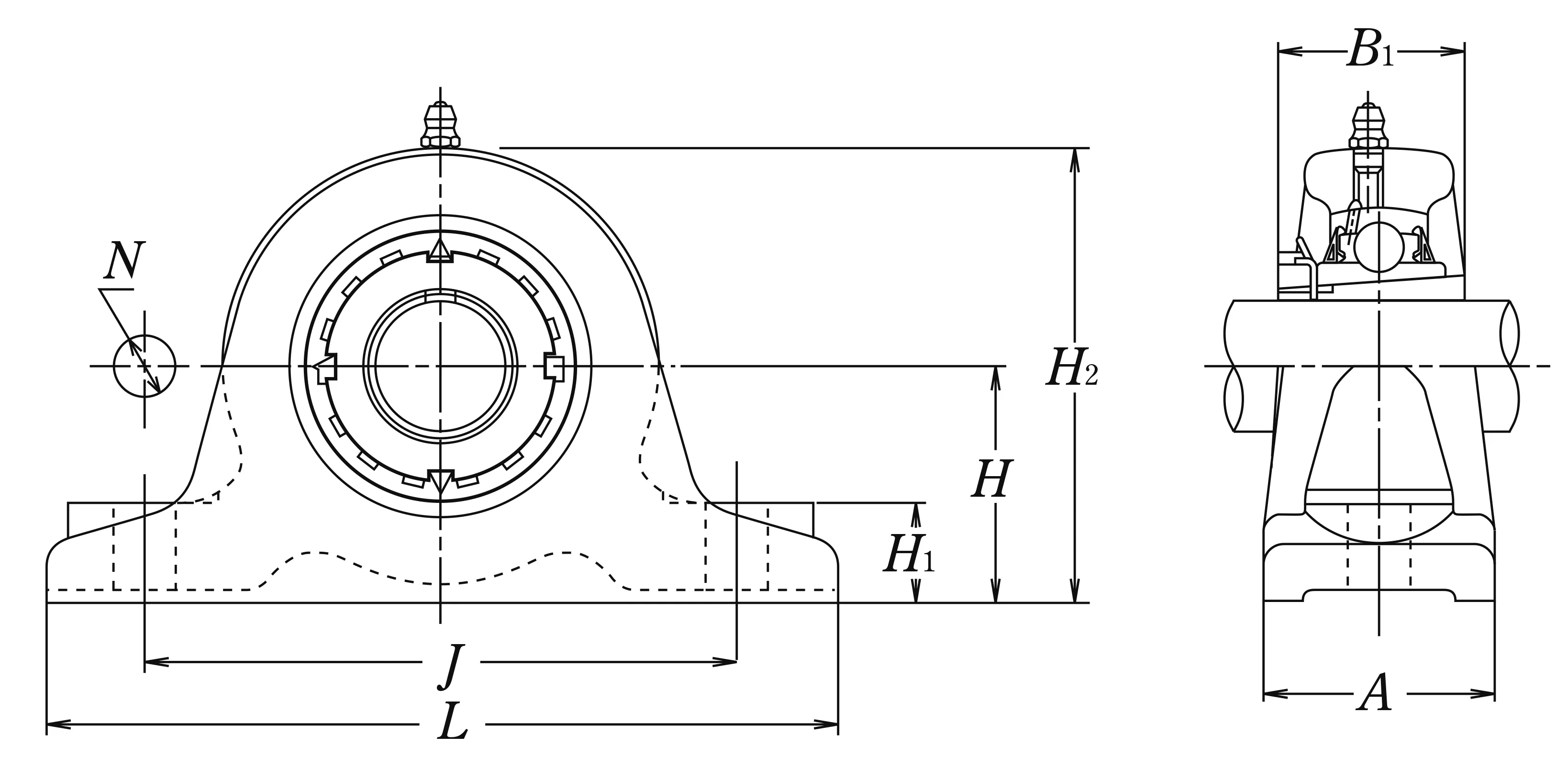

Nominal Dimensions

d	125	mm	Bore diameter
L	590	mm	Overall length
H	200	mm	Height of spherical seat centre
J	500	mm	Distance between attachment bolts
N	36	mm	Diameter of attachment bolt hole
A	110	mm	Base width
H1	55	mm	Distance between bottoms of piloting grooves
B1	131	mm	Width of inner ring
H2	400	mm	Overall height

Mounting information

G

M33

Bolt size

Basic Load Ratings

Cr	253	kN	Basic dynamic load rating
C0r	246	kN	Basic static load rating

Mass

mass

85

kg

Mass approx.
