UCIP324D1-

Designations

UCIP324D1

Included products

Bearing	UC324D1		Bearing
Housing	IP324D1		Housing

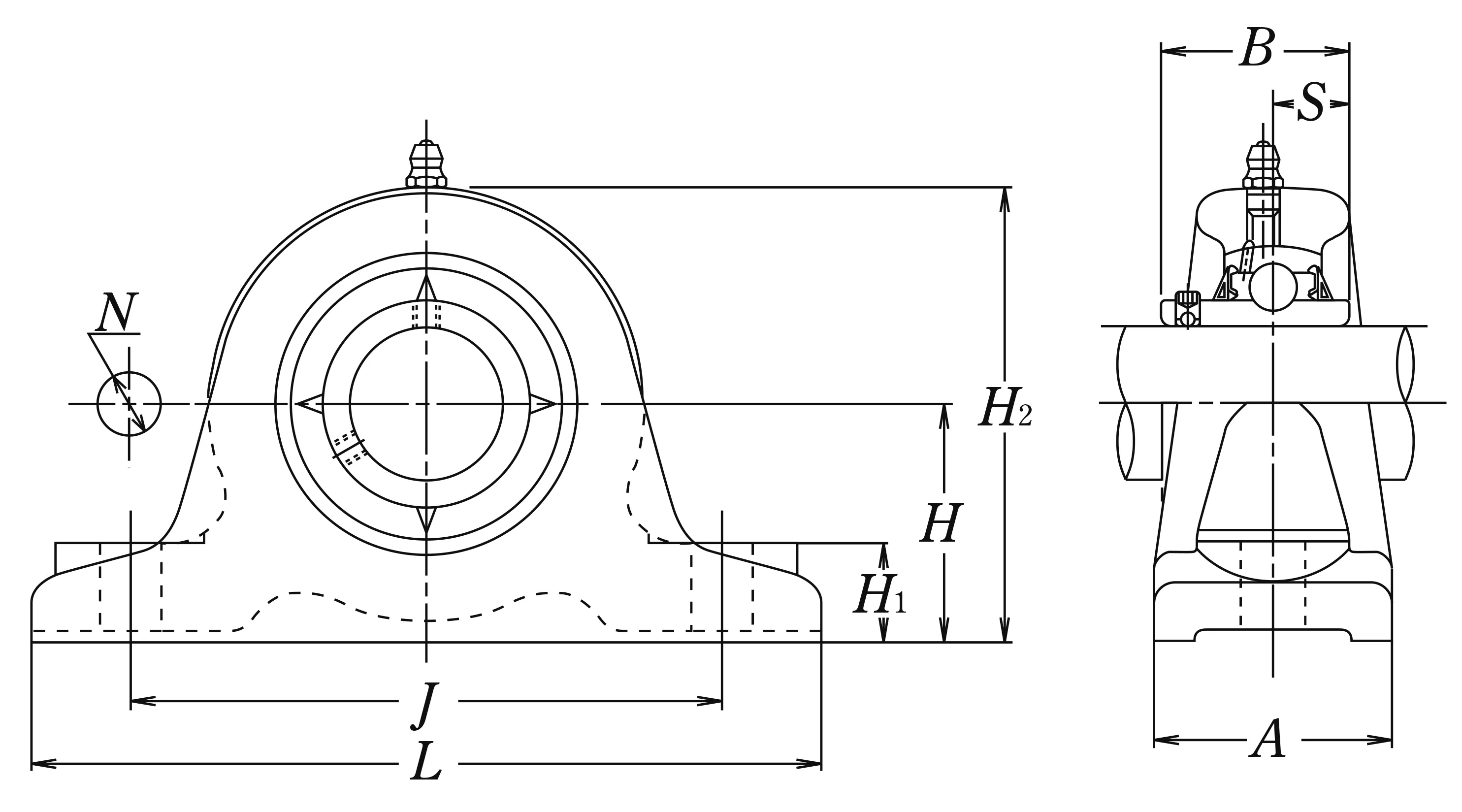

Nominal Dimensions

d	120	mm	Bore diameter
L	510	mm	Overall length
H	170	mm	Height of spherical seat centre
J	430	mm	Distance between attachment bolts
N	33	mm	Diameter of attachment bolt hole
A	100	mm	Base width
H1	50	mm	Distance between bottoms of piloting grooves
B	126	mm	Width of inner ring
S	51	mm	Distance from Opposite side face of locking device to raceway centre
H2	345	mm	Overall height

Mounting information

G

M30

Bolt size

Basic Load Ratings

Cr	207	kN	Basic dynamic load rating
C0r	185	kN	Basic static load rating

Mass

mass

55

kg

Mass approx.
