UCPG321D1-

Designations

UCPG321D1

Included products

Bearing	UC321D1		Bearing
Housing	PG321D1		Housing

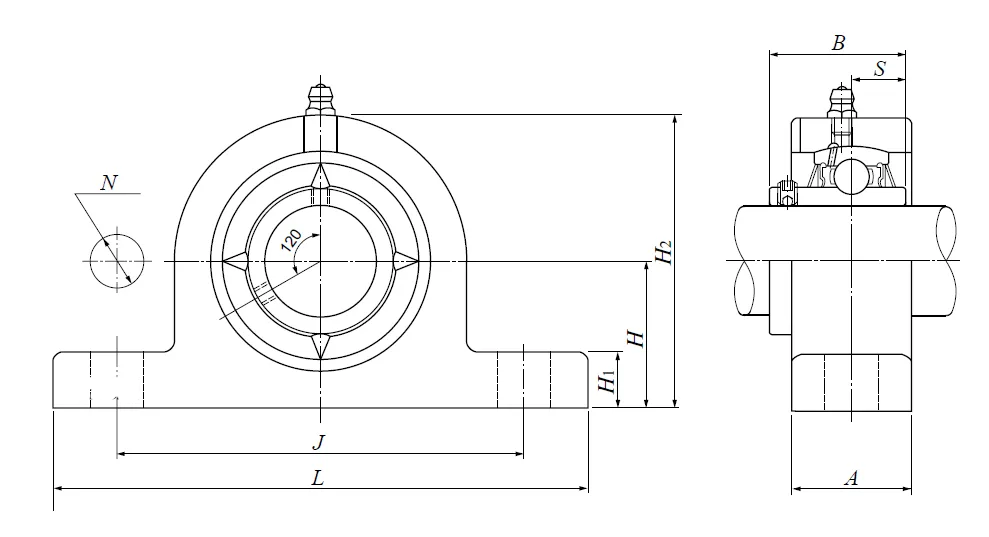

Nominal Dimensions

d	105	mm	Bore diameter
L	490	mm	Overall length
H	140	mm	Height of spherical seat centre
J	380	mm	Distance between attachment bolts
N	35	mm	Diameter of attachment bolt hole
A	90	mm	Base width
H1	50	mm	Distance between bottoms of piloting grooves
B	112	mm	Width of inner ring
S	44	mm	Distance from Opposite side face of locking device to raceway centre
H2	280	mm	Overall height

Mounting information

G

M30

Bolt size

Basic Load Ratings

Cr	184	kN	Basic dynamic load rating
C0r	153	kN	Basic static load rating

Mass

mass

35

kg

Mass approx.
