UKIP322D1-

Designations

UKIP322D1

Included products

Bearing	UK322D1		Bearing
Housing	IP322D1		Housing

Associated products

Adapter sleeve

H2322X

Adapter sleeve

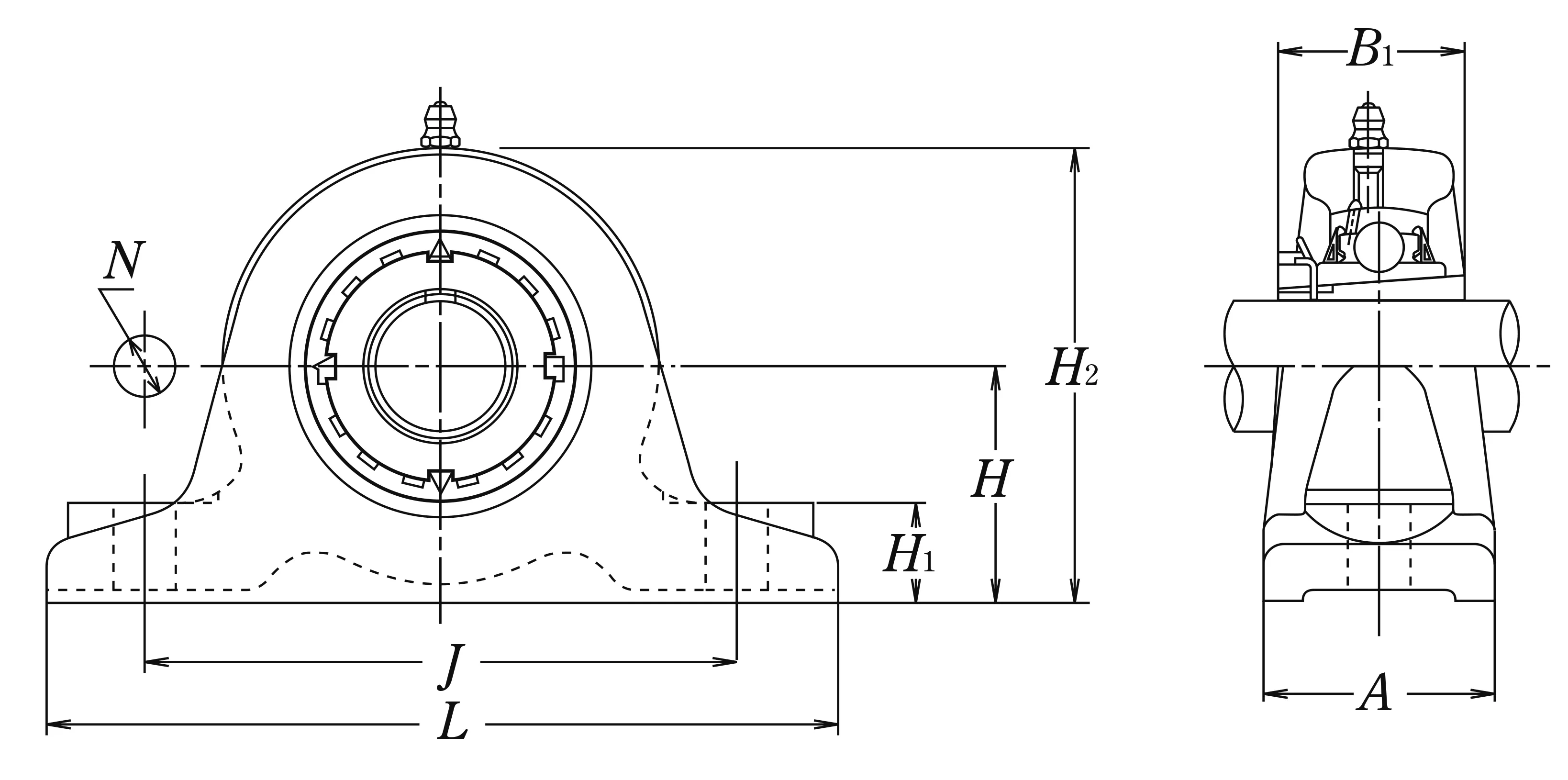

Nominal Dimensions

d	100	mm	Bore diameter
L	490	mm	Overall length
H	170	mm	Height of spherical seat centre
J	410	mm	Distance between attachment bolts
N	33	mm	Diameter of attachment bolt hole
A	100	mm	Base width
H1	50	mm	Distance between bottoms of piloting grooves
B1	105	mm	Width of inner ring
H2	335	mm	Overall height

Mounting information

G

M30

Bolt size

Basic Load Ratings

Cr	205	kN	Basic dynamic load rating
C0r	179	kN	Basic static load rating

Mass

mass

51

kg

Mass approx.
