UCPG309D1-

Designations

UCPG309D1

Included products

Bearing	UC309D1		Bearing
Housing	PG309D1		Housing

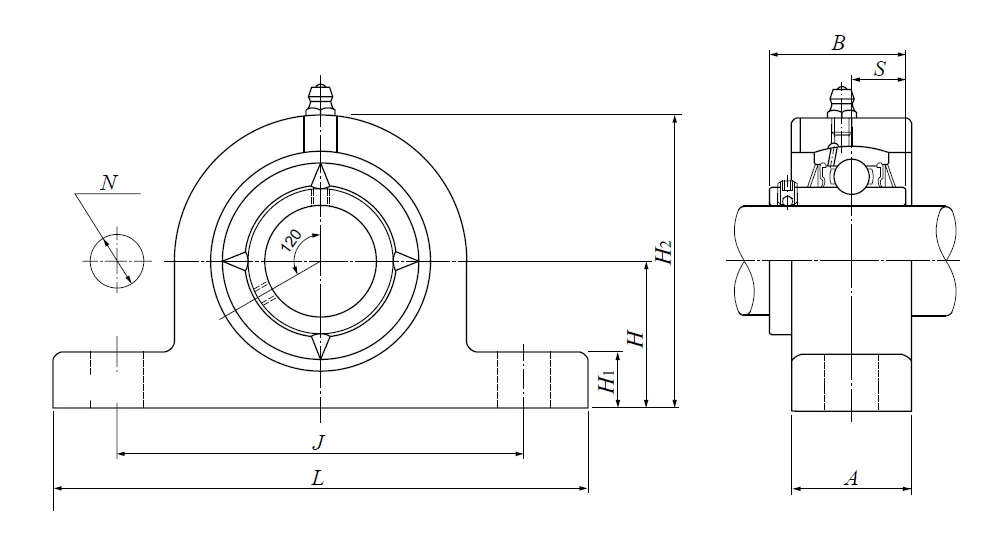

Nominal Dimensions

d	45	mm	Bore diameter
L	245	mm	Overall length
H	67	mm	Height of spherical seat centre
J	190	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A	50	mm	Base width
H1	24	mm	Distance between bottoms of piloting grooves
B	57	mm	Width of inner ring
S	22	mm	Distance from Opposite side face of locking device to raceway centre
H2	129	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	53	kN	Basic dynamic load rating
C0r	32	kN	Basic static load rating

Mass

mass

4.1

kg

Mass approx.
