F-UCPM208/LP99-

Designations

F-UCPM208/LP99

Included products

Bearing	F-UC208D1/LP99		Bearing
Housing	PM208		Housing

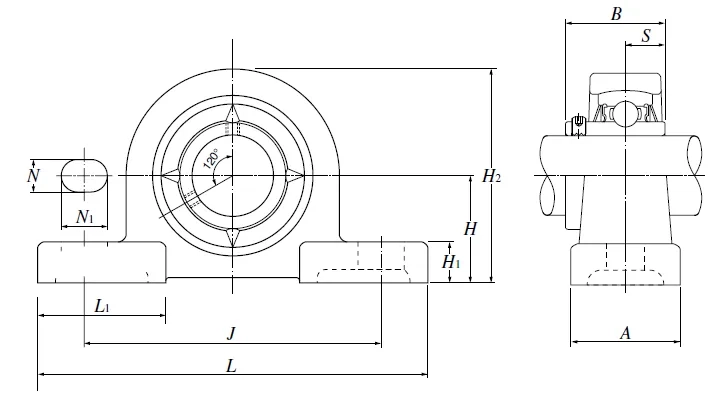

Nominal Dimensions

d	40	mm	Bore diameter
N1	20	mm	Length of attachment bolt hole
L	171	mm	Overall length
H	49.2	mm	Height of spherical seat centre
J	137	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A	40	mm	Base width
H1	14	mm	Distance between bottoms of piloting grooves
B	49.2	mm	Width of inner ring
S	19	mm	Distance from Opposite side face of locking device to raceway centre
H2	98	mm	Overall height

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	22.4	kN	Basic dynamic load rating
C0r	17.8	kN	Basic static load rating

Mass

mass

1.6

kg

Mass approx.
