C-UKP208D1-

Designations

C-UKP208D1

Included products

Bearing	UK208D1		Bearing
Housing	P208D1		Housing

Associated products

Adapter sleeve

H2308X

Adapter sleeve

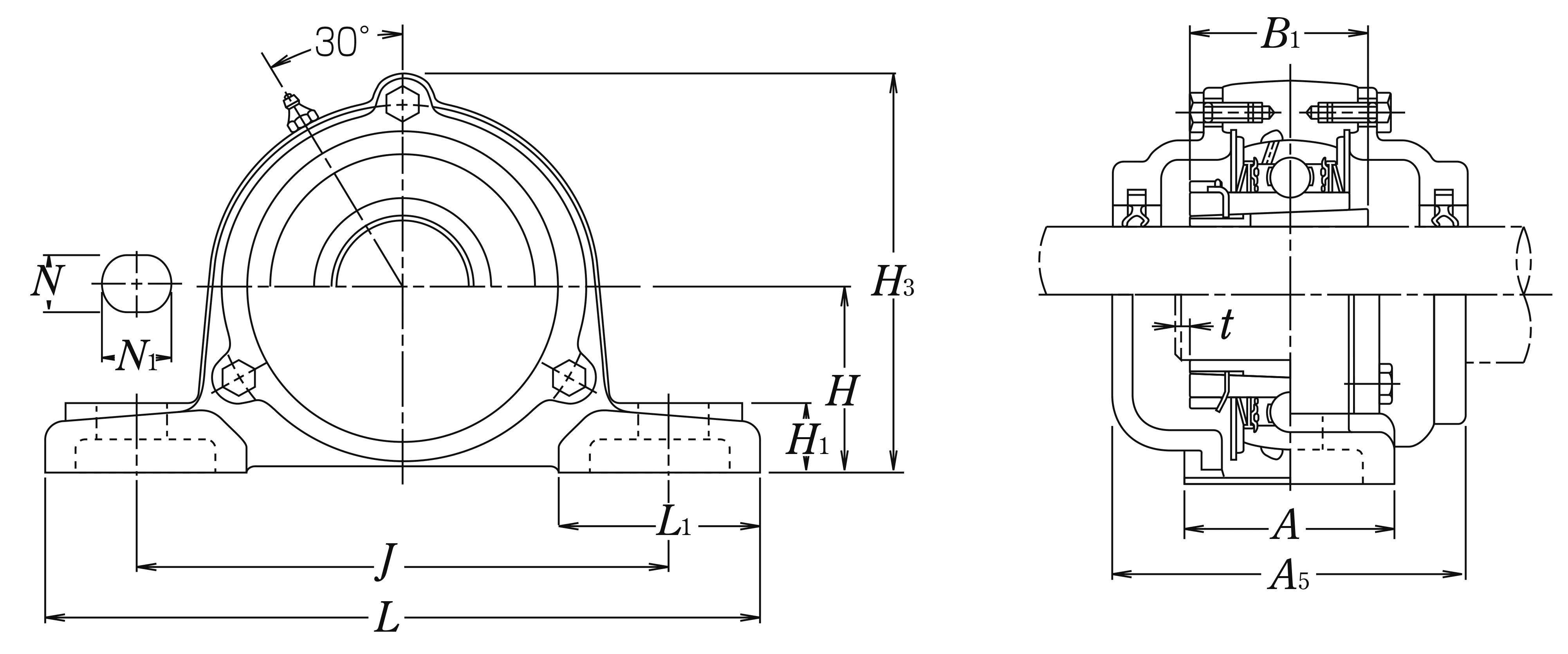

Nominal Dimensions

d	35	mm	Bore diameter
N1	20	mm	Length of attachment bolt hole
L	184	mm	Overall length
H	49.2	mm	Height of spherical seat centre
H3	105	mm	Overall height
J	137	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A	54	mm	Base width
A5	90	mm	Width including end cover
t	3	mm	Clearance
H1	18	mm	Distance between bottoms of piloting grooves
B1	46	mm	Width of inner ring
L1	52	mm	Foot width

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	29.1	kN	Basic dynamic load rating
C0r	17.8	kN	Basic static load rating

Mass

mass

2.8

kg

Mass approx.
