UKPE208D1-

Designations

UKPE208D1

Included products

Bearing	UK208D1		Bearing
Housing	PE208D1		Housing

Associated products

Adapter sleeve

H2308X

Adapter sleeve

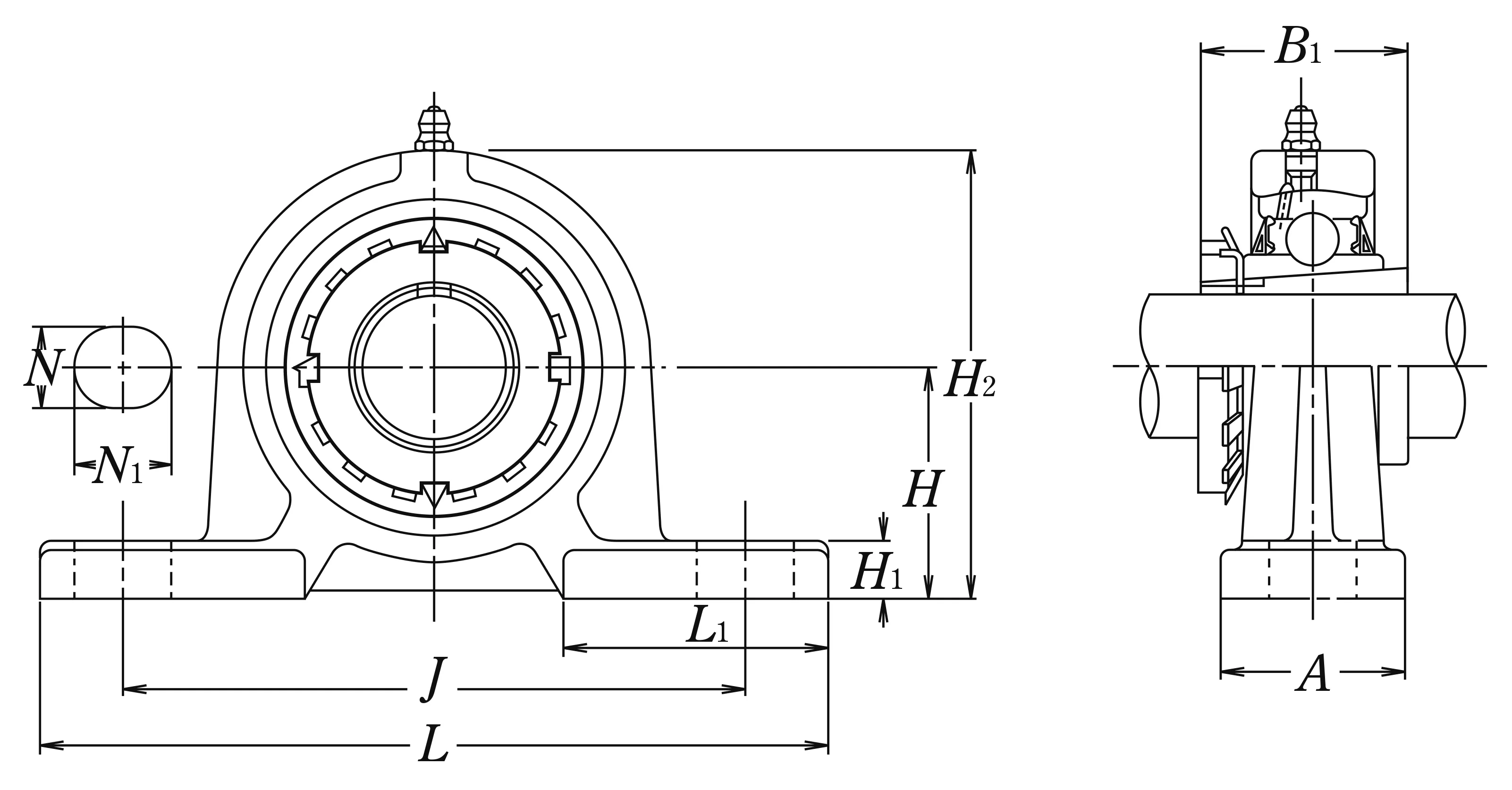

Nominal Dimensions

d	35	mm	Bore diameter
N1	20	mm	Length of attachment bolt hole
L	171	mm	Overall length
H	49.2	mm	Height of spherical seat centre
J	137	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A	40	mm	Base width
H1	12	mm	Distance between bottoms of piloting grooves
B1	46	mm	Width of inner ring
L1	52	mm	Foot width
H2	98	mm	Overall height

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	29.1	kN	Basic dynamic load rating
C0r	17.8	kN	Basic static load rating

Mass

mass

1.5

kg

Mass approx.
