UCUP206D1-

Designations

UCUP206D1

Included products

Bearing	UC206D1		Bearing
Housing	UP206D1		Housing

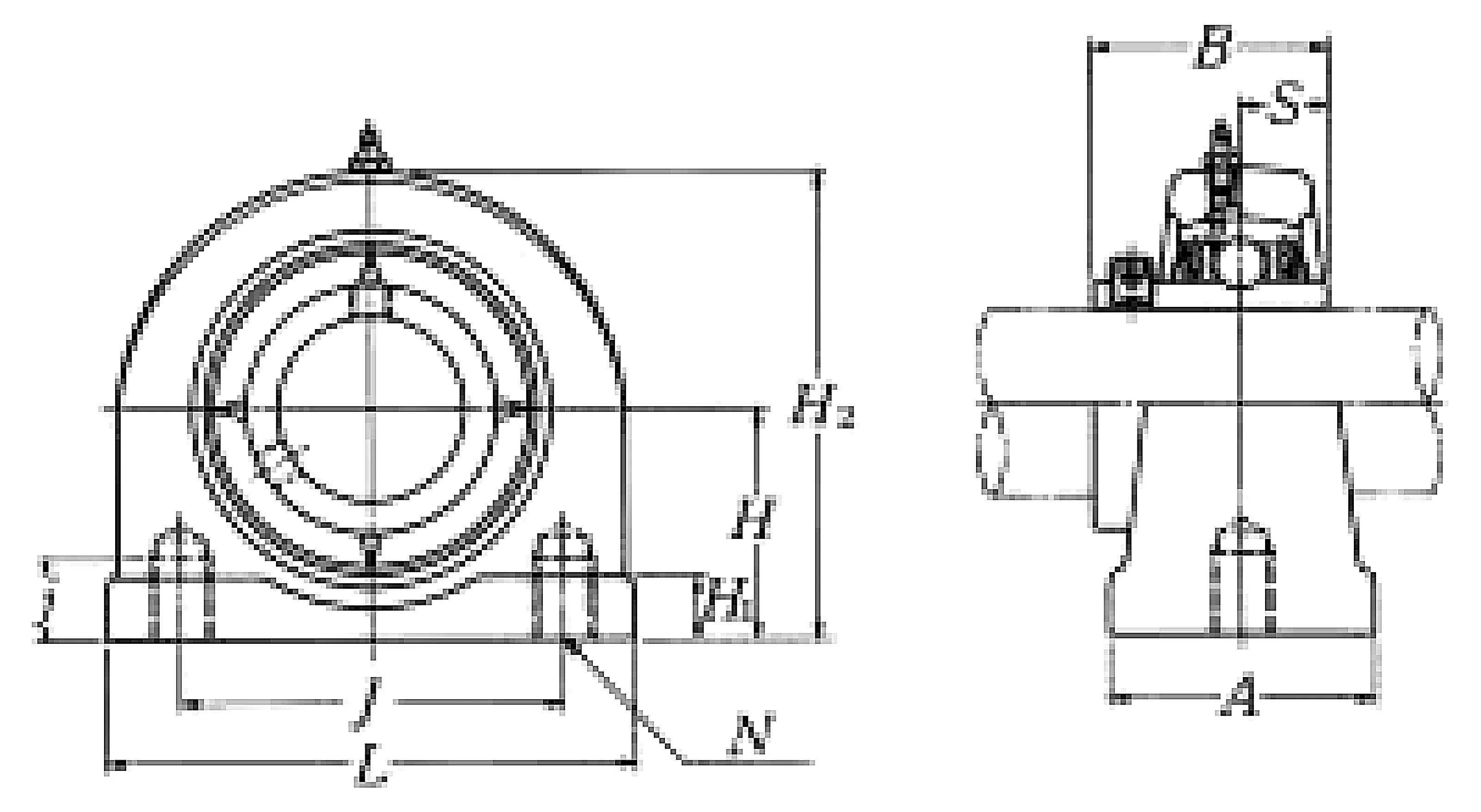

Nominal Dimensions

d	30	mm	Bore diameter
L	94	mm	Overall length
H	42.9	mm	Height of spherical seat centre
J	66	mm	Distance between attachment bolts
A	48	mm	Base width
H1	12	mm	Distance between bottoms of piloting grooves
B	38.1	mm	Width of inner ring
S	15.9	mm	Distance from Opposite side face of locking device to raceway centre
j	18	mm	Thread length
H2	84	mm	Overall height

Mounting information

N

M14×2

Set screw

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

1.1

kg

Mass approx.
