ASPP206-

Designations

ASPP206

Included products

Bearing	AS206		Bearing
Housing	PP206		Housing

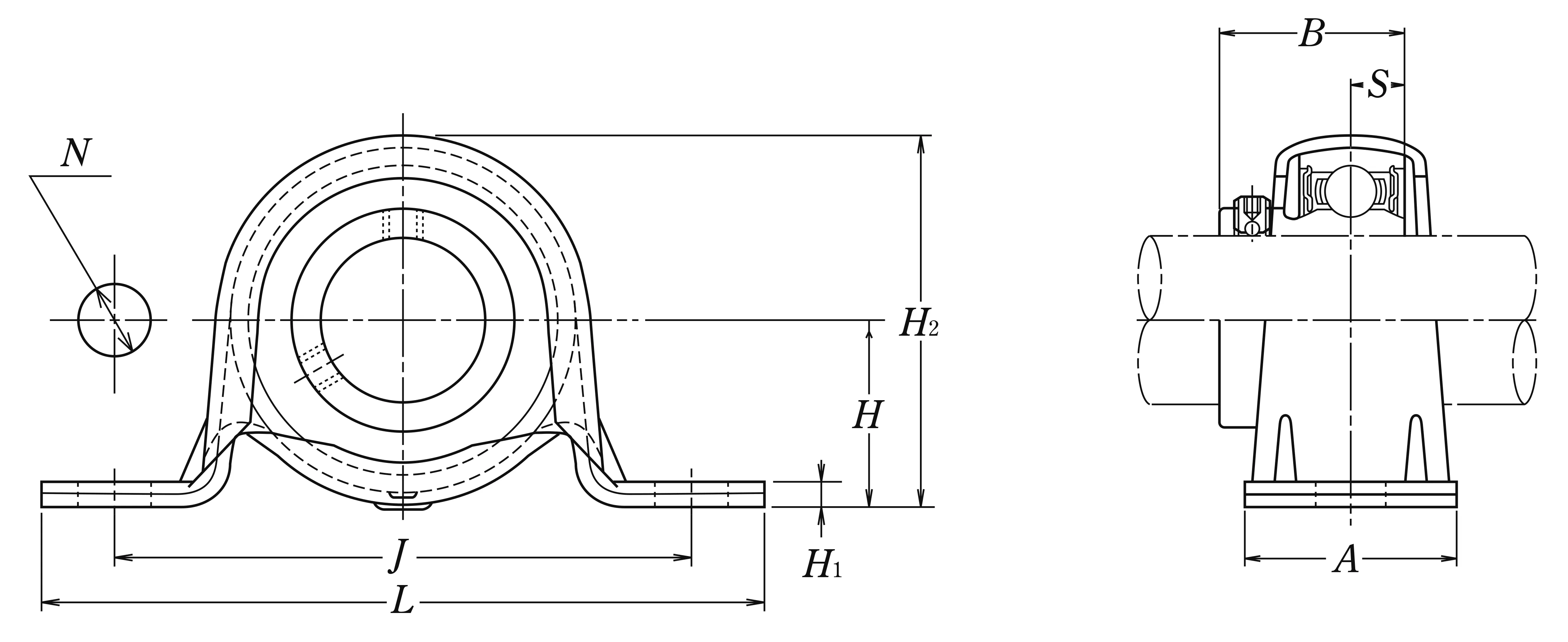

Nominal Dimensions

d	30	mm	Bore diameter
L	117	mm	Overall length
H	33.3	mm	Height of spherical seat centre
J	95	mm	Distance between attachment bolts
N	11.5	mm	Diameter of attachment bolt hole
A	38	mm	Base width
H1	4	mm	Distance between bottoms of piloting grooves
B	29	mm	Width of inner ring
S	8	mm	Distance from Opposite side face of locking device to raceway centre
H2	66.3	mm	Overall height

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

0.4

kg

Mass approx.
