ASPP205-

Designations

ASPP205

Included products

Bearing	AS205		Bearing
Housing	PP205		Housing

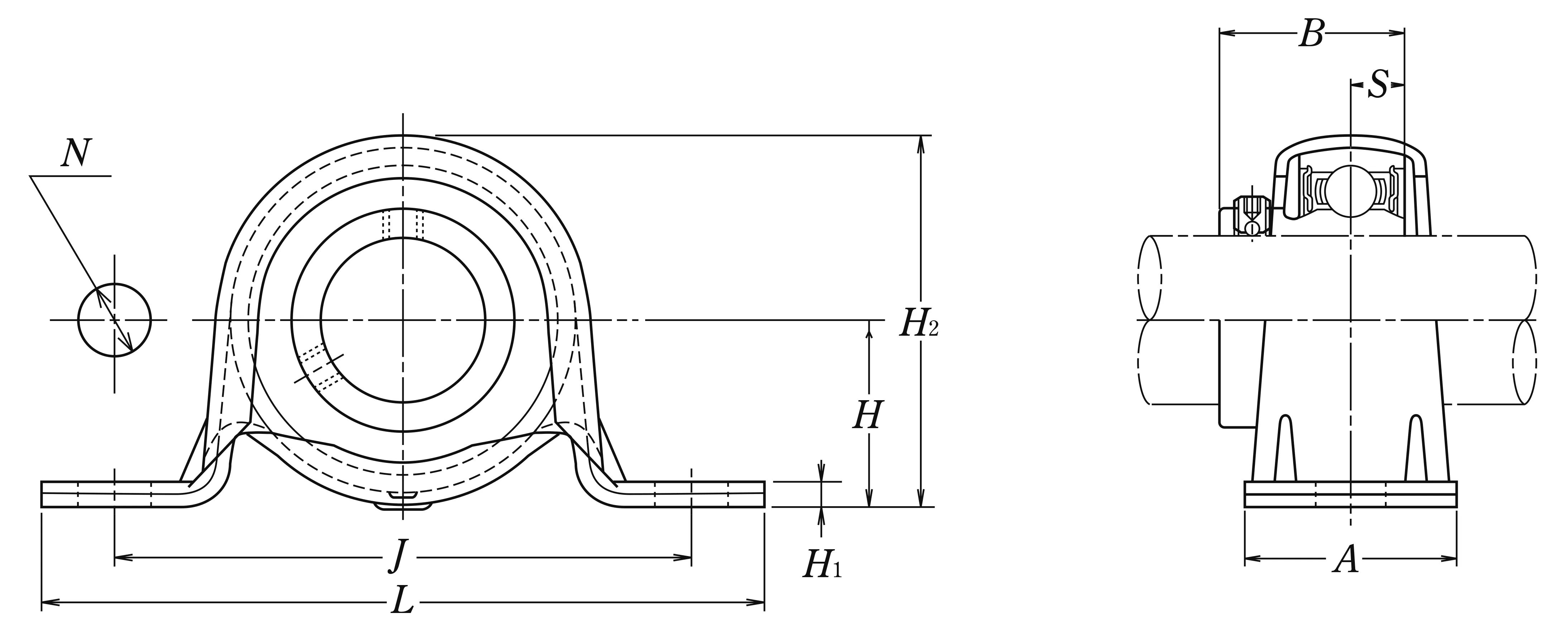

Nominal Dimensions

d	25	mm	Bore diameter
L	108	mm	Overall length
H	28.6	mm	Height of spherical seat centre
J	86	mm	Distance between attachment bolts
N	11.5	mm	Diameter of attachment bolt hole
A	32	mm	Base width
H1	4	mm	Distance between bottoms of piloting grooves
B	27	mm	Width of inner ring
S	7.5	mm	Distance from Opposite side face of locking device to raceway centre
H2	56.6	mm	Overall height

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

mass

0.3

kg

Mass approx.
