ASRPP204-

Designations

ASRPP204

Included products

Bearing	AS204		Bearing
Housing	PP205		Housing
Rubber ring	R204		Rubber ring

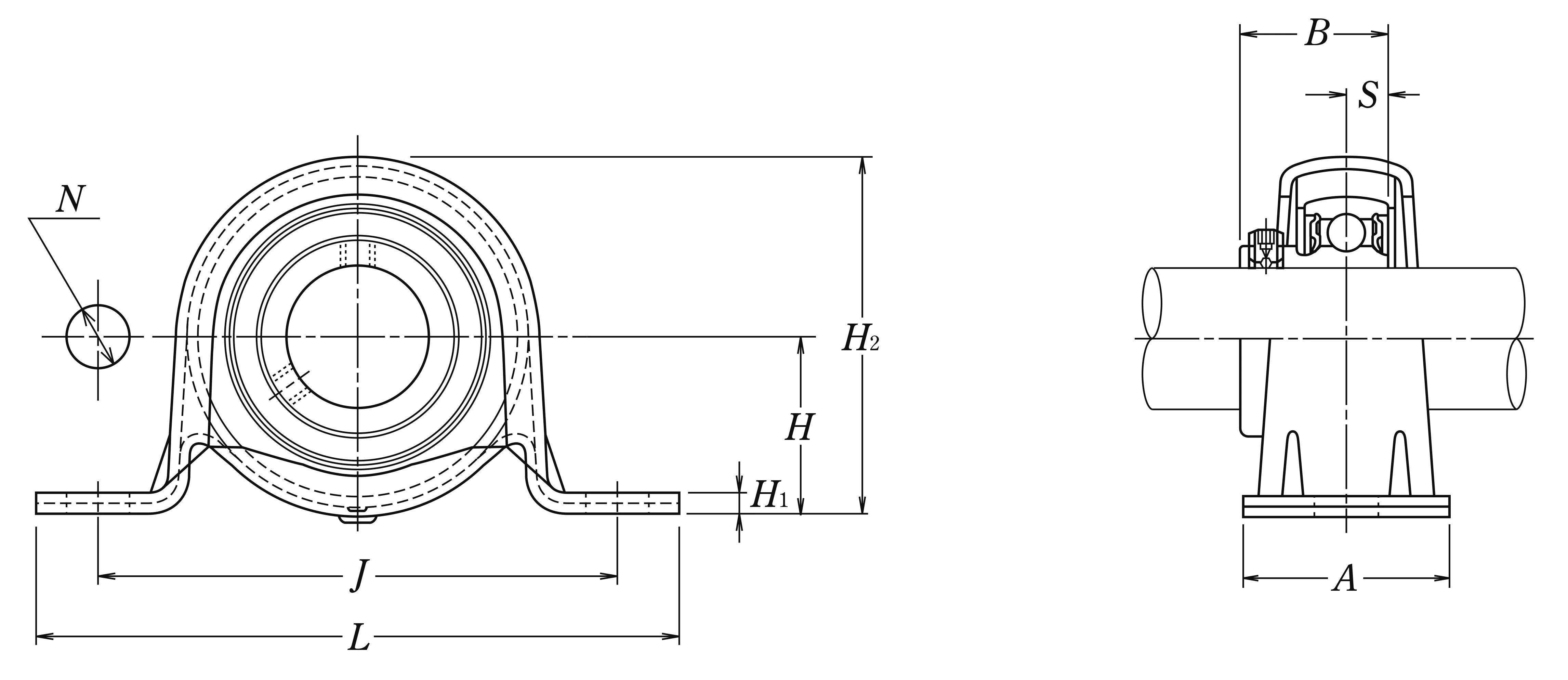

Nominal Dimensions

d	20	mm	Bore diameter
L	108	mm	Overall length
H	28.6	mm	Height of spherical seat centre
J	86	mm	Distance between attachment bolts
N	11.5	mm	Diameter of attachment bolt hole
A	32	mm	Base width
H1	4	mm	Distance between bottoms of piloting grooves
B	25	mm	Width of inner ring
S	7	mm	Distance from Opposite side face of locking device to raceway centre
H2	4	mm	Overall height

Mounting information

G

M10

Bolt size

Permissible housing load

CR	1.15	kN	Radial
CA	0.2	kN	Axial

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.3

kg

Mass approx.
