AELPP204-

Designations

AELPP204

Included products

Bearing	AEL204		Bearing
Housing	PP204		Housing

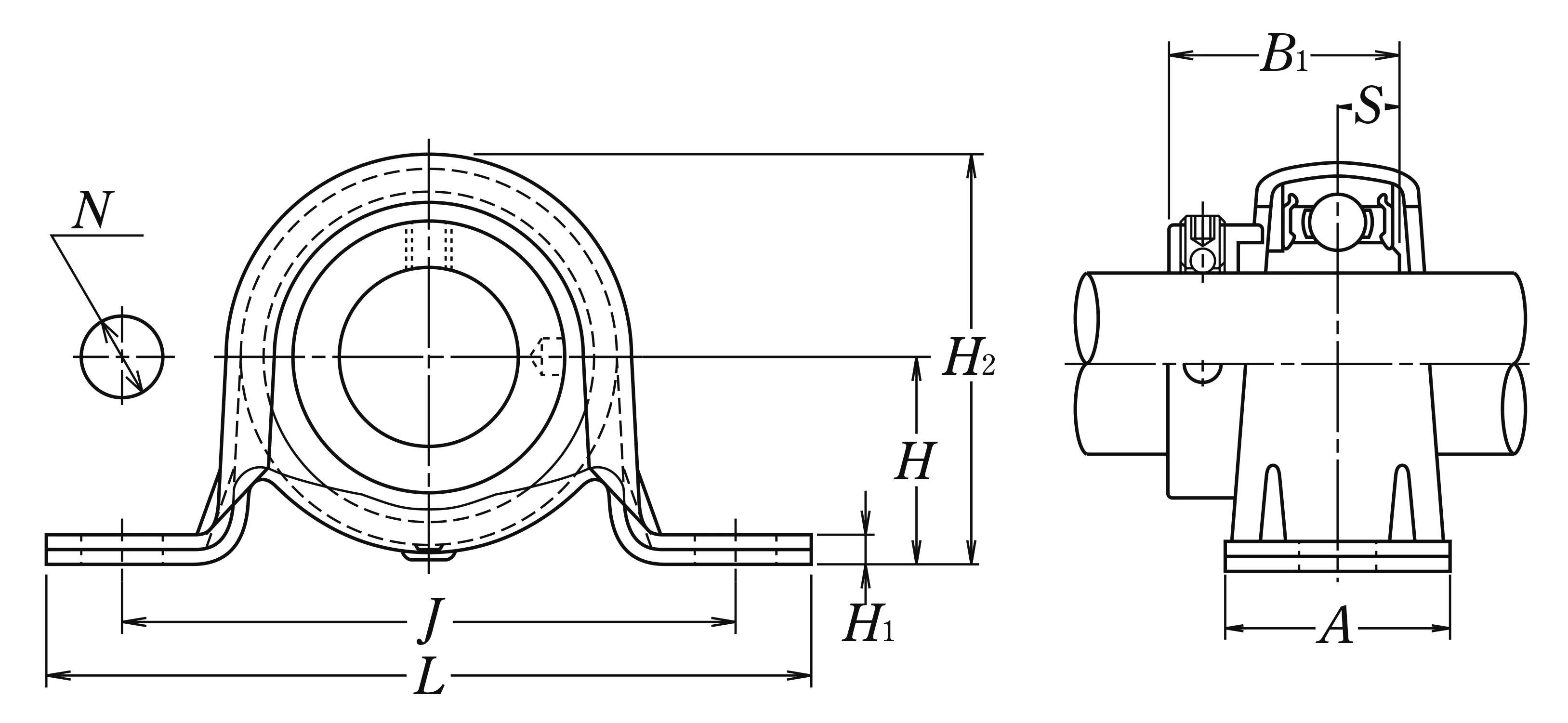

Nominal Dimensions

d	20	mm	Bore diameter
L	98	mm	Overall length
H	25.4	mm	Height of spherical seat centre
J	76	mm	Distance between attachment bolts
N	9.5	mm	Diameter of attachment bolt hole
A	32	mm	Base width
H1	3.2	mm	Distance between bottoms of piloting grooves
B1	31	mm	Width of inner ring
S	7.5	mm	Distance from Opposite side face of locking device to raceway centre
H2	50.5	mm	Overall height

Mounting information

G

M 8

Bolt size

Permissible housing load

CR	2.5	kN	Radial
CA	1	kN	Axial

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.2

kg

Mass approx.
