C-UCFL326D1-

Designations

C-UCFL326D1

Included products

Bearing	UC326D1		Bearing
Housing	FL326D1		Housing

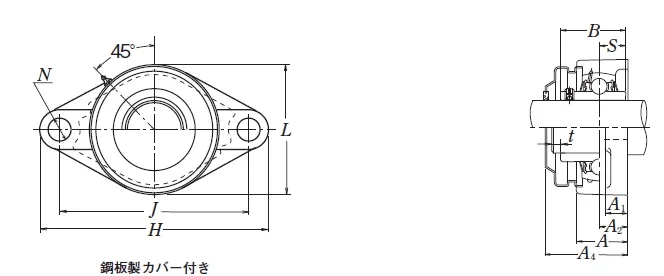

Nominal Dimensions

d	130	mm	Bore diameter
L,L1	376	mm	Overall height
J	460	mm	Distance between attachment bolts
N	47	mm	Diameter of attachment bolt hole
A2	65	mm	Flange width
A1	50	mm	Flange width
A5	178	mm	Width including end cover
B,B1,B2	135	mm	Width of inner ring
t	6	mm	Clearance
H	550	mm	Overall length
L2	180	mm	Height of spherical seat centre
S	54	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M42

Bolt size

Basic Load Ratings

Cr	229	kN	Basic dynamic load rating
C0r	214	kN	Basic static load rating

Mass

mass

64

kg

Mass approx.
