UKFL326D1-

Designations

UKFL326D1

Included products

Bearing	UK326D1		Bearing
Housing	FL326D1		Housing

Associated products

Adapter sleeve

H2326

Adapter sleeve

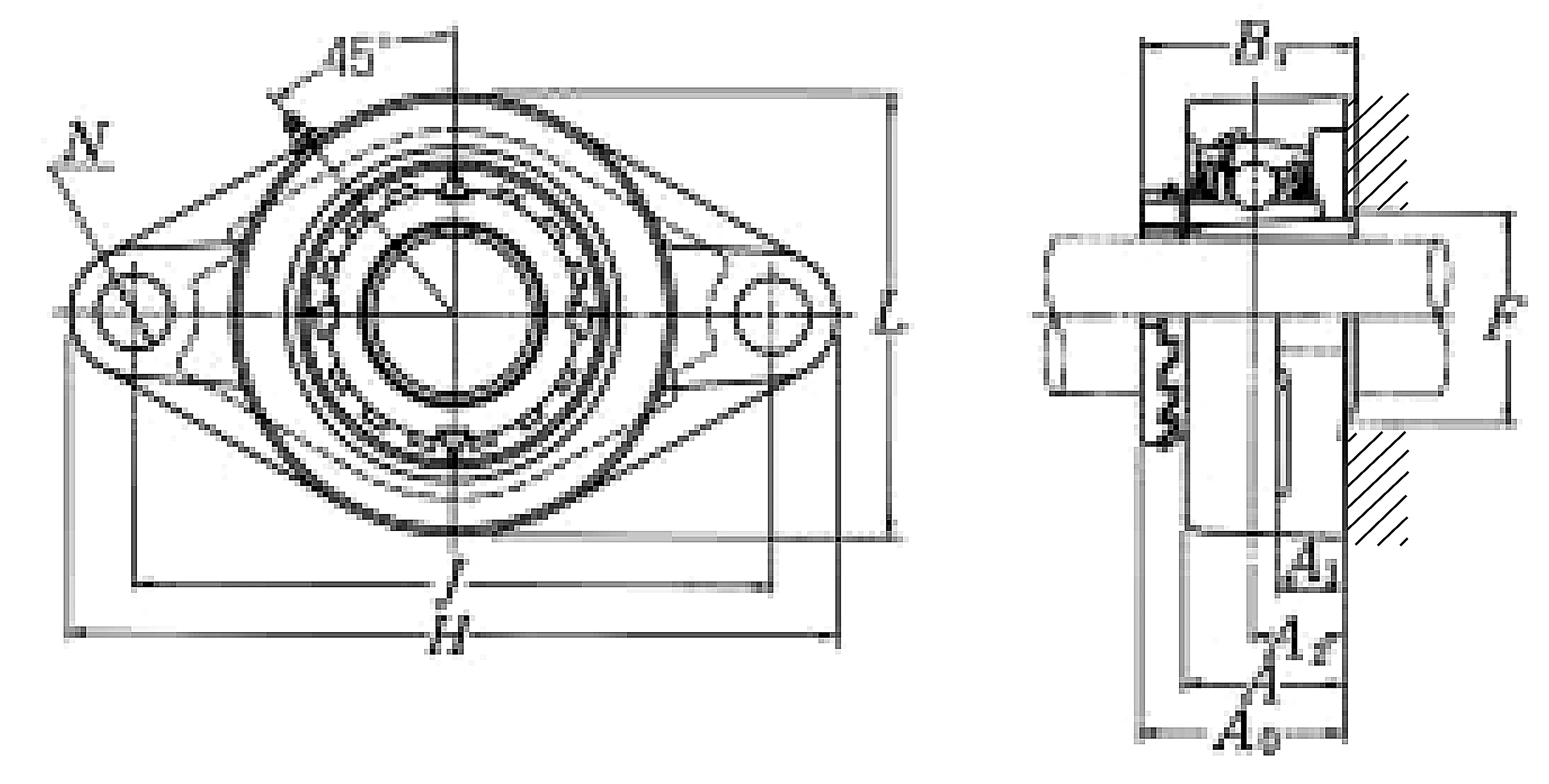

Nominal Dimensions

d	115	mm	Bore diameter
L,L1	360	mm	Overall height
J	460	mm	Distance between attachment bolts
N	47	mm	Diameter of attachment bolt hole
A2	65	mm	Flange width
A1	50	mm	Flange width
A	115	mm	Base width
B,B1,B2	121	mm	Width of inner ring
H	550	mm	Overall length

Mounting information

G

M42

Bolt size

Basic Load Ratings

Cr	229	kN	Basic dynamic load rating
C0r	214	kN	Basic static load rating

Mass

mass

58

kg

Mass approx.
