UCFL318D1-

Designations

UCFL318D1

Included products

Bearing	UC318D1		Bearing
Housing	FL318D1		Housing

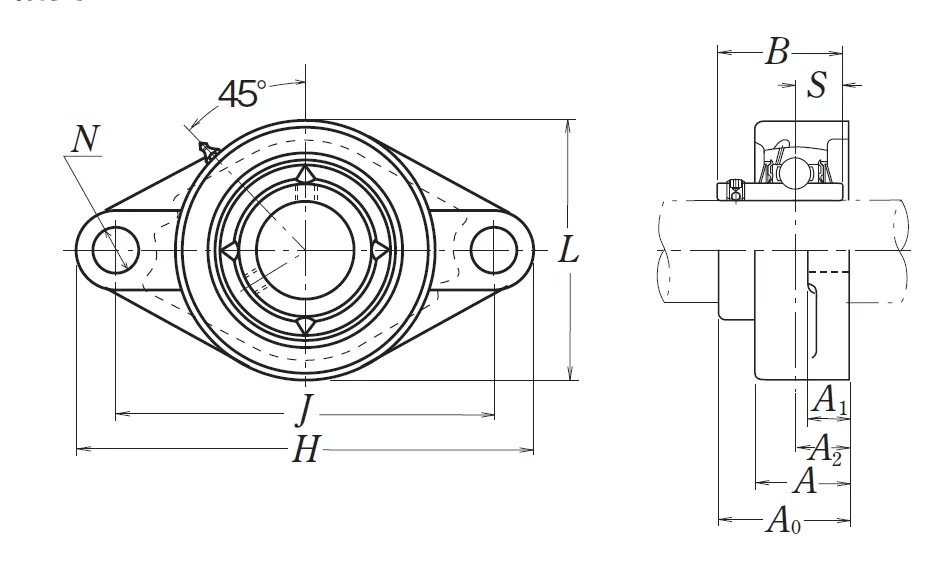

Nominal Dimensions

d	90	mm	Bore diameter
L,L1	235	mm	Overall height
J	315	mm	Distance between attachment bolts
N	38	mm	Diameter of attachment bolt hole
A2	44	mm	Flange width
A1	36	mm	Flange width
A	76	mm	Base width
A0	100	mm	Overall width
B,B1,B2	96	mm	Width of inner ring
H	385	mm	Overall length
S	40	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M33

Bolt size

Basic Load Ratings

Cr	143	kN	Basic dynamic load rating
C0r	107	kN	Basic static load rating

Mass

mass

17

kg

Mass approx.
