CM-UCFL218D1-

Designations

CM-UCFL218D1

Included products

Bearing	UC218D1		Bearing
Housing	FL218D1		Housing

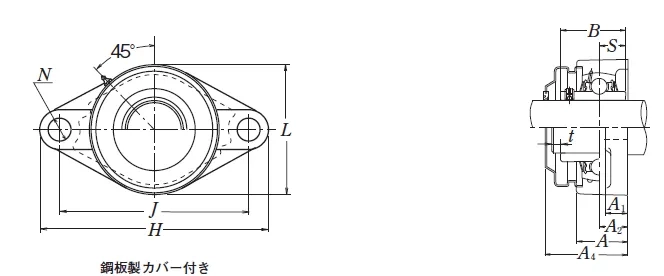

Nominal Dimensions

d	90	mm	Bore diameter
L,L1	205	mm	Overall height
J	265	mm	Distance between attachment bolts
N	25	mm	Diameter of attachment bolt hole
A2	40	mm	Flange width
A1	24	mm	Flange width
A5	122	mm	Width including end cover
B,B1,B2	96	mm	Width of inner ring
t	5	mm	Clearance
H	320	mm	Overall length
L2	102.5	mm	Height of spherical seat centre
S	39.7	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	96	kN	Basic dynamic load rating
C0r	71.5	kN	Basic static load rating

Mass

mass

13

kg

Mass approx.
