CM-UKFL317D1-

Designations

CM-UKFL317D1

Included products

Bearing	UK317D1		Bearing
Housing	FL317D1		Housing

Associated products

Adapter sleeve

H2317X

Adapter sleeve

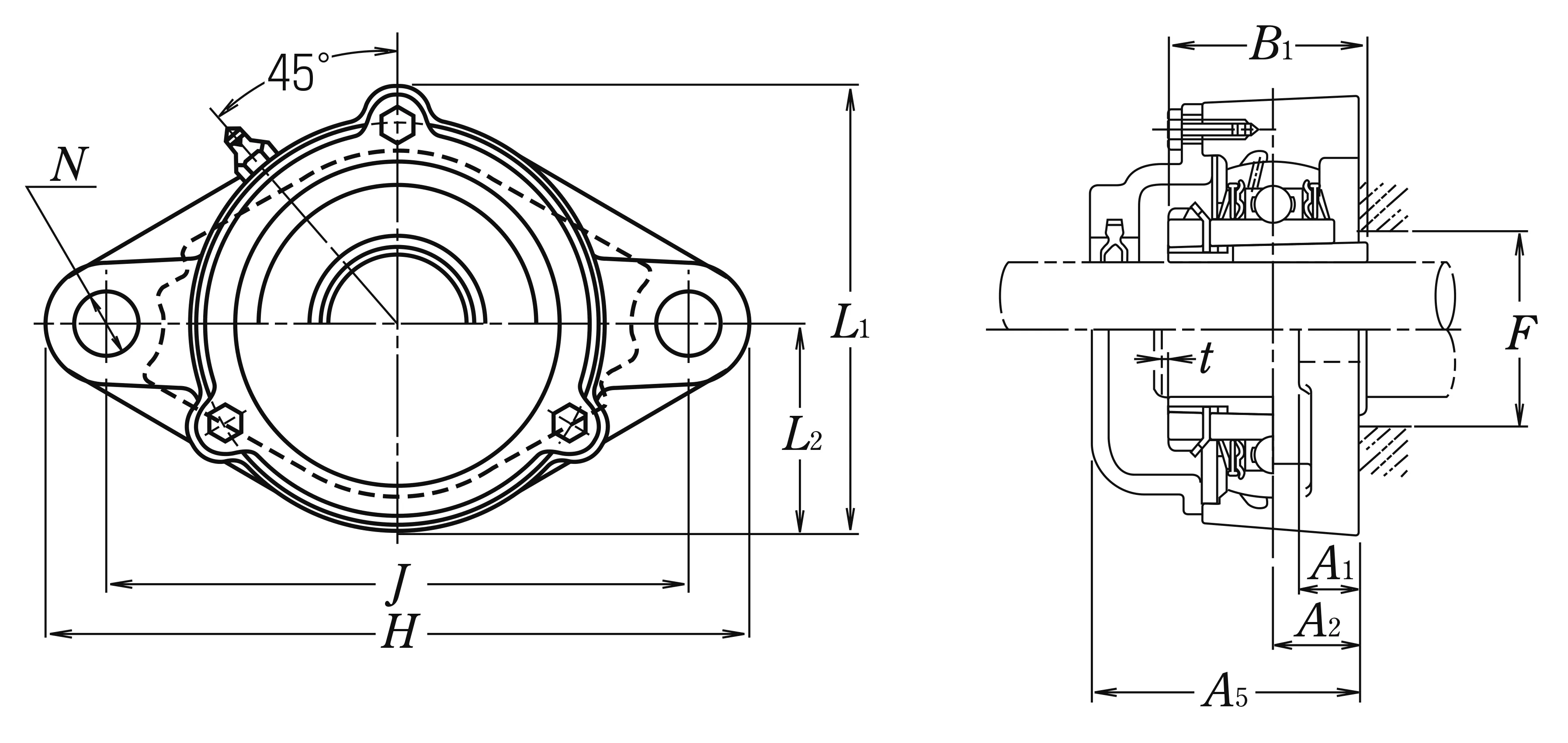

Nominal Dimensions

d	75	mm	Bore diameter
L,L1	234	mm	Overall height
J	300	mm	Distance between attachment bolts
N	38	mm	Diameter of attachment bolt hole
A2	44	mm	Flange width
A1	32	mm	Flange width
A5	127	mm	Width including end cover
B,B1,B2	82	mm	Width of inner ring
t	5	mm	Clearance
H	370	mm	Overall length
L2	110	mm	Height of spherical seat centre

Mounting information

G

M33

Bolt size

Basic Load Ratings

Cr	133	kN	Basic dynamic load rating
C0r	97	kN	Basic static load rating

Mass

mass

18

kg

Mass approx.
