C-UCFL312D1-

Designations

C-UCFL312D1

Included products

Bearing	UC312D1		Bearing
Housing	FL312D1		Housing

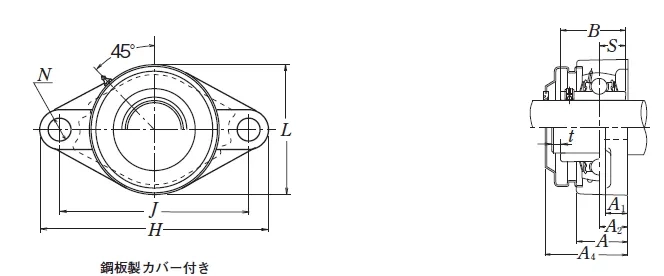

Nominal Dimensions

d	60	mm	Bore diameter
L,L1	175	mm	Overall height
J	212	mm	Distance between attachment bolts
N	31	mm	Diameter of attachment bolt hole
A2	33	mm	Flange width
A1	22	mm	Flange width
A5	100	mm	Width including end cover
B,B1,B2	71	mm	Width of inner ring
t	4	mm	Clearance
H	270	mm	Overall length
L2	80	mm	Height of spherical seat centre
S	26	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M27

Bolt size

Basic Load Ratings

Cr	82	kN	Basic dynamic load rating
C0r	52	kN	Basic static load rating

Mass

mass

7.7

kg

Mass approx.
