C-UCFL310D1-

Designations

C-UCFL310D1

Included products

Bearing	UC310D1		Bearing
Housing	FL310D1		Housing

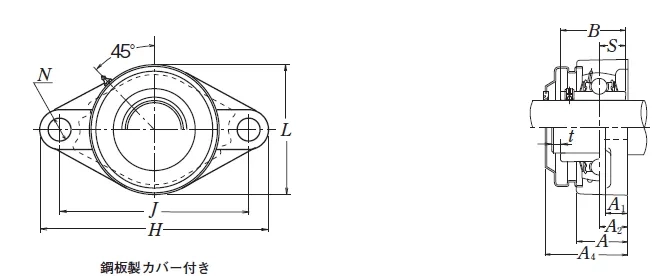

Nominal Dimensions

d	50	mm	Bore diameter
L,L1	152	mm	Overall height
J	187	mm	Distance between attachment bolts
N	25	mm	Diameter of attachment bolt hole
A2	28	mm	Flange width
A1	19	mm	Flange width
A5	88	mm	Width including end cover
B,B1,B2	61	mm	Width of inner ring
t	3	mm	Clearance
H	240	mm	Overall length
L2	70	mm	Height of spherical seat centre
S	22	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	62	kN	Basic dynamic load rating
C0r	38.5	kN	Basic static load rating

Mass

mass

5

kg

Mass approx.
