UELFLU210D1-

Designations

UELFLU210D1

Included products

Bearing	UEL210D1		Bearing
Housing	FLU210D1		Housing

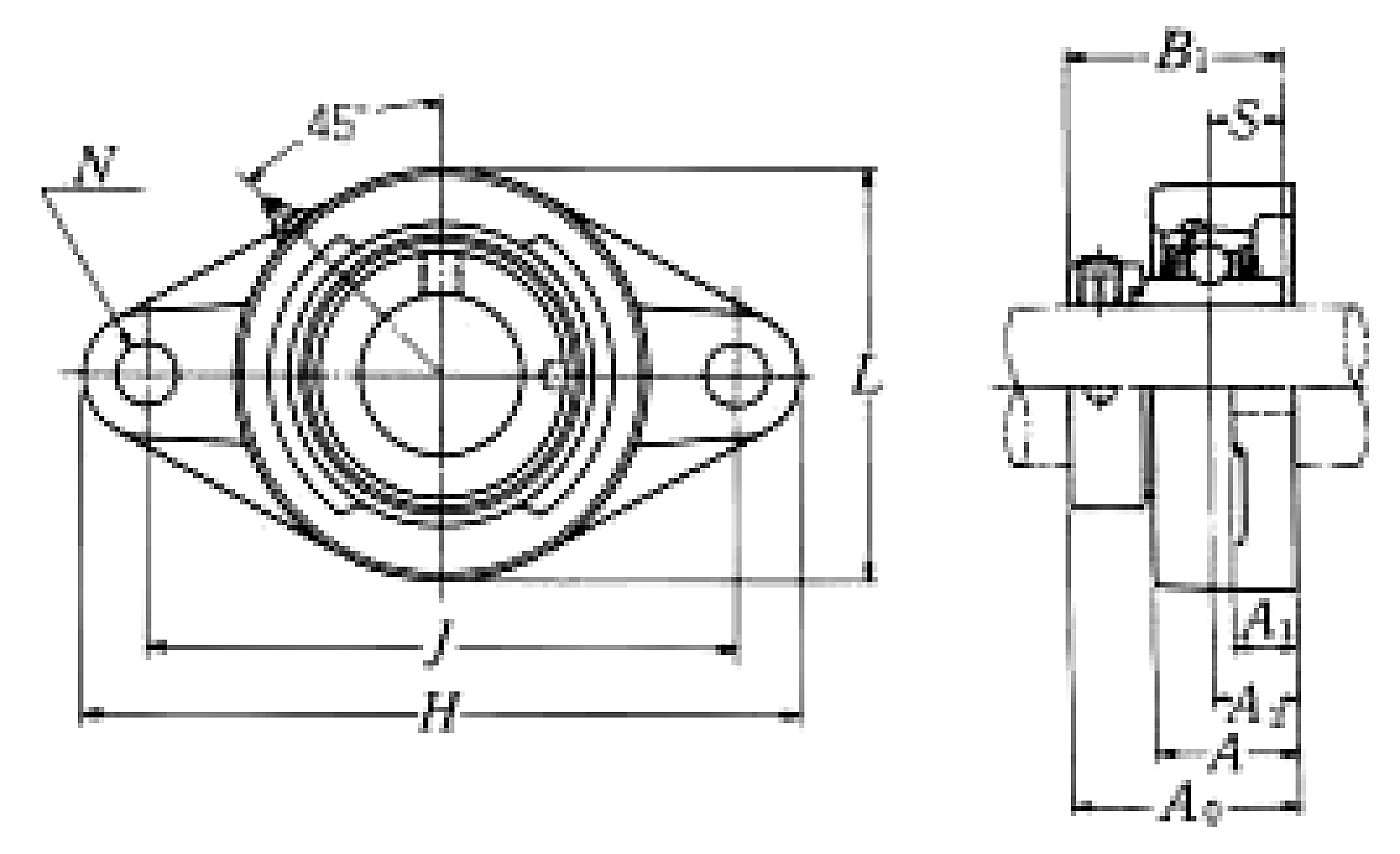

Nominal Dimensions

d	50	mm	Bore diameter
L,L1	116	mm	Overall height
J	157	mm	Distance between attachment bolts
N	18	mm	Diameter of attachment bolt hole
A2	28	mm	Flange width
A1	20	mm	Flange width
A	46	mm	Base width
A0	66.1	mm	Overall width
B,B1,B2	62.7	mm	Width of inner ring
H	190	mm	Overall length
S	24.6	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	35	kN	Basic dynamic load rating
C0r	23.2	kN	Basic static load rating

Mass

mass

2.9

kg

Mass approx.
