UKFL310D1-

Designations

UKFL310D1

Included products

Bearing	UK310D1		Bearing
Housing	FL310D1		Housing

Associated products

Adapter sleeve

H2310X

Adapter sleeve

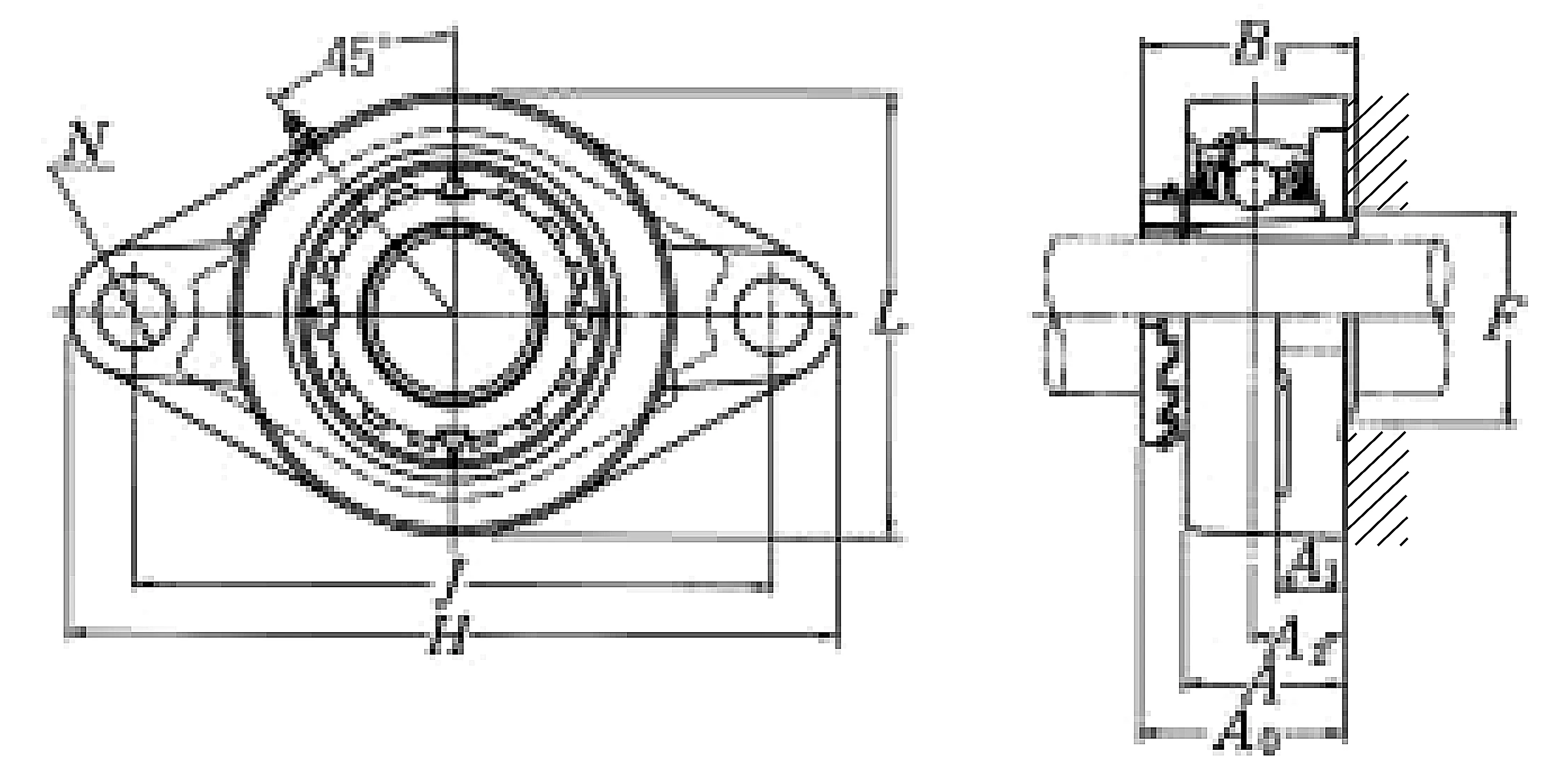

Nominal Dimensions

d	45	mm	Bore diameter
L,L1	140	mm	Overall height
J	187	mm	Distance between attachment bolts
N	28	mm	Diameter of attachment bolt hole
A2	28	mm	Flange width
A1	19	mm	Flange width
A	48	mm	Base width
A0	60.5	mm	Overall width
B,B1,B2	55	mm	Width of inner ring
H	240	mm	Overall length

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	62	kN	Basic dynamic load rating
C0r	38.5	kN	Basic static load rating

Mass

mass

4.1

kg

Mass approx.
