UCFLX09D1-

Designations

UCFLX09D1

Included products

Bearing	UCX09D1		Bearing
Housing	FLX09D1		Housing

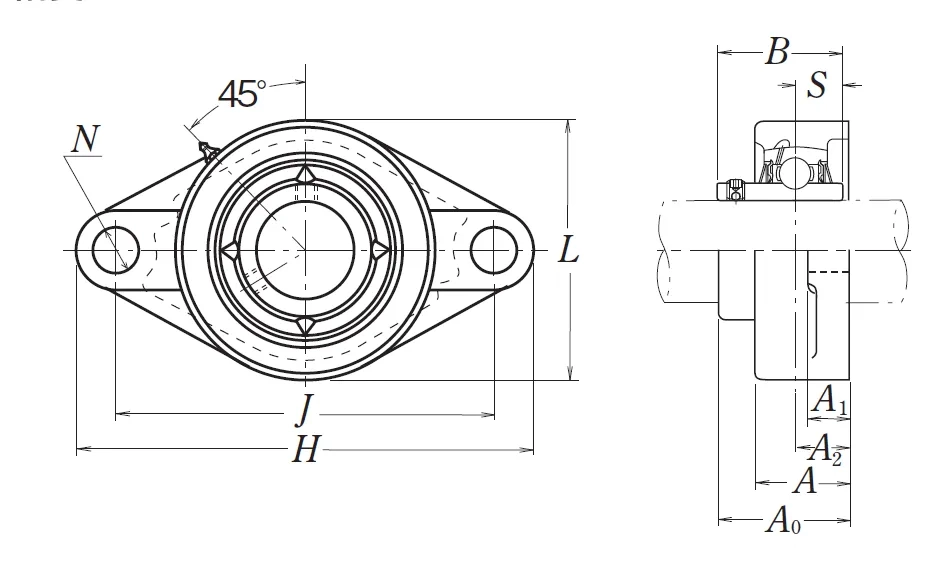

Nominal Dimensions

d	45	mm	Bore diameter
L,L1	116	mm	Overall height
J	157	mm	Distance between attachment bolts
N	16	mm	Diameter of attachment bolt hole
A2	23	mm	Flange width
A1	16	mm	Flange width
A	40	mm	Base width
A0	55.6	mm	Overall width
B,B1,B2	51.6	mm	Width of inner ring
H	189	mm	Overall length
S	19	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	35	kN	Basic dynamic load rating
C0r	23.2	kN	Basic static load rating

Mass

mass

2.2

kg

Mass approx.
