UKFL305D1-

Designations

UKFL305D1

Included products

Bearing	UK305D1		Bearing
Housing	FL305D1		Housing

Associated products

Adapter sleeve

H2305X

Adapter sleeve

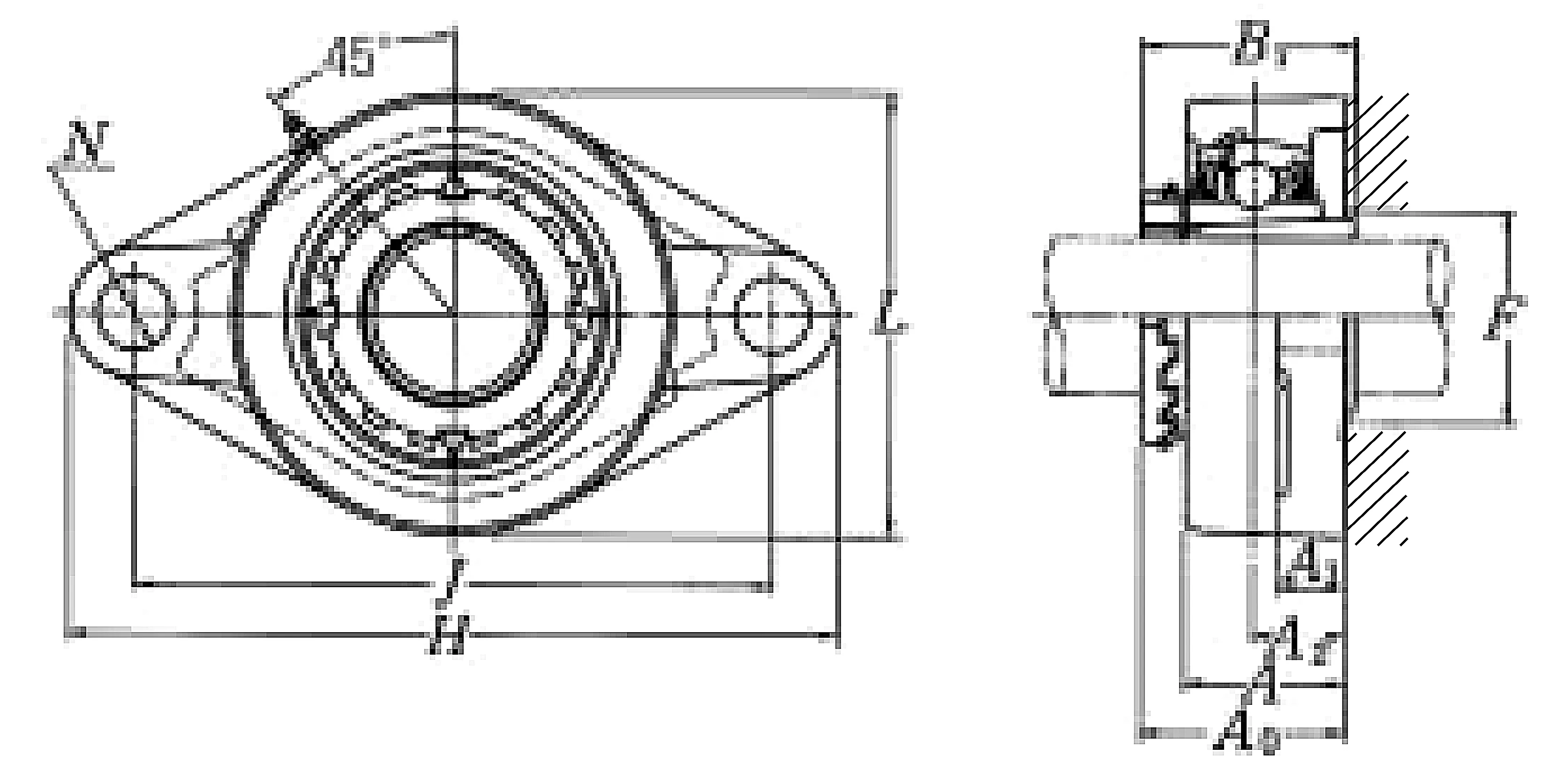

Nominal Dimensions

d	20	mm	Bore diameter
L,L1	80	mm	Overall height
J	113	mm	Distance between attachment bolts
N	16	mm	Diameter of attachment bolt hole
A2	16	mm	Flange width
A1	13	mm	Flange width
A	29	mm	Base width
A0	37	mm	Overall width
B,B1,B2	35	mm	Width of inner ring
F	30	mm	Diameter of housing abutment
H	150	mm	Overall length

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	21.2	kN	Basic dynamic load rating
C0r	10.9	kN	Basic static load rating

Mass

mass

1

kg

Mass approx.
