C-UKFLX05D1-

Designations

C-UKFLX05D1

Included products

Bearing	UKX05D1		Bearing
Housing	FLX05D1		Housing

Associated products

Adapter sleeve

H2305X

Adapter sleeve

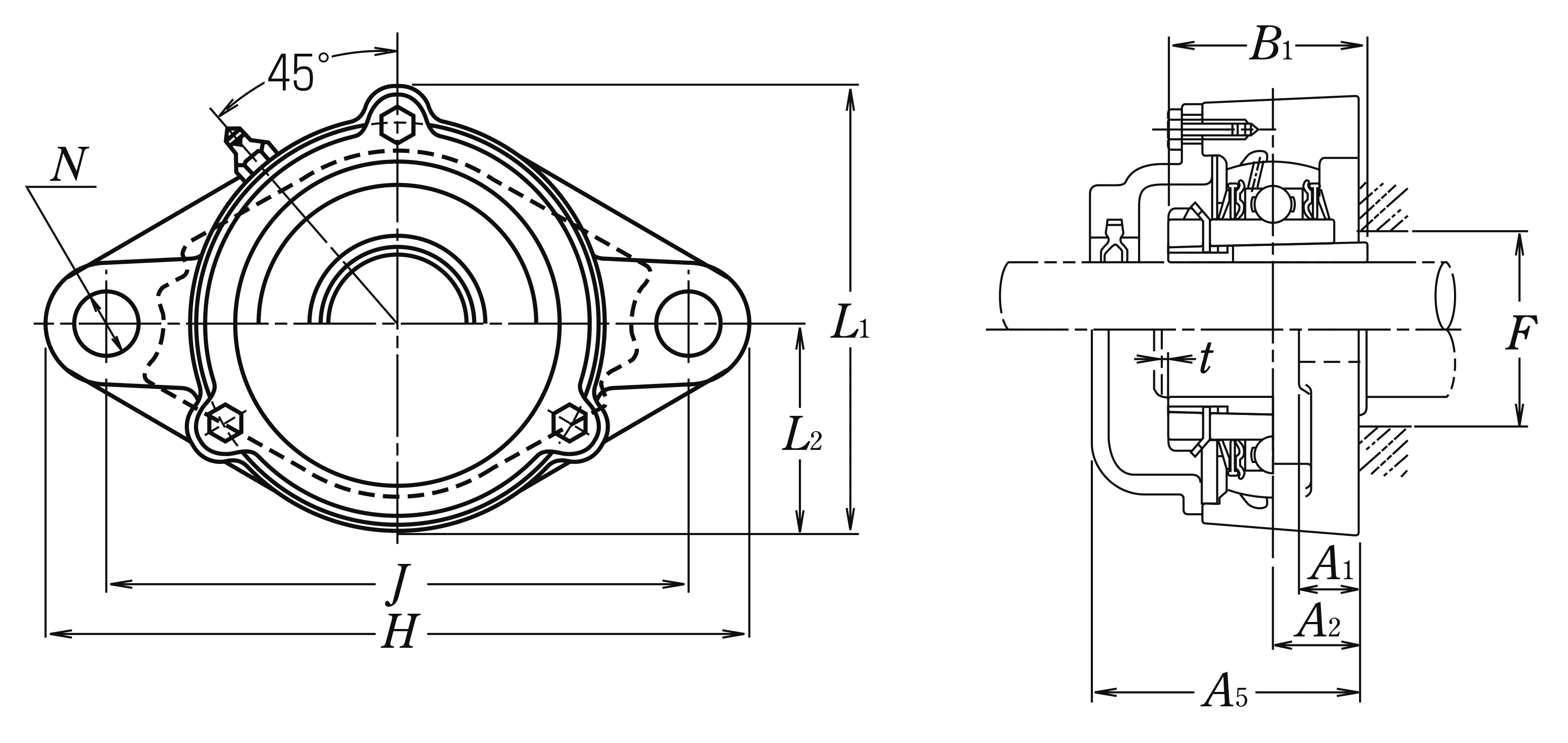

Nominal Dimensions

d	20	mm	Bore diameter
L,L1	86	mm	Overall height
J	117	mm	Distance between attachment bolts
N	18	mm	Diameter of attachment bolt hole
A2	18	mm	Flange width
A1	13	mm	Flange width
B,B1,B2	35	mm	Width of inner ring
t	2	mm	Clearance
H	141	mm	Overall length
L2	41.5	mm	Height of spherical seat centre

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

1.2

kg

Mass approx.
