ASFB201-

Designations

ASFB201

Included products

Bearing	AS201		Bearing
Housing	FB201		Housing

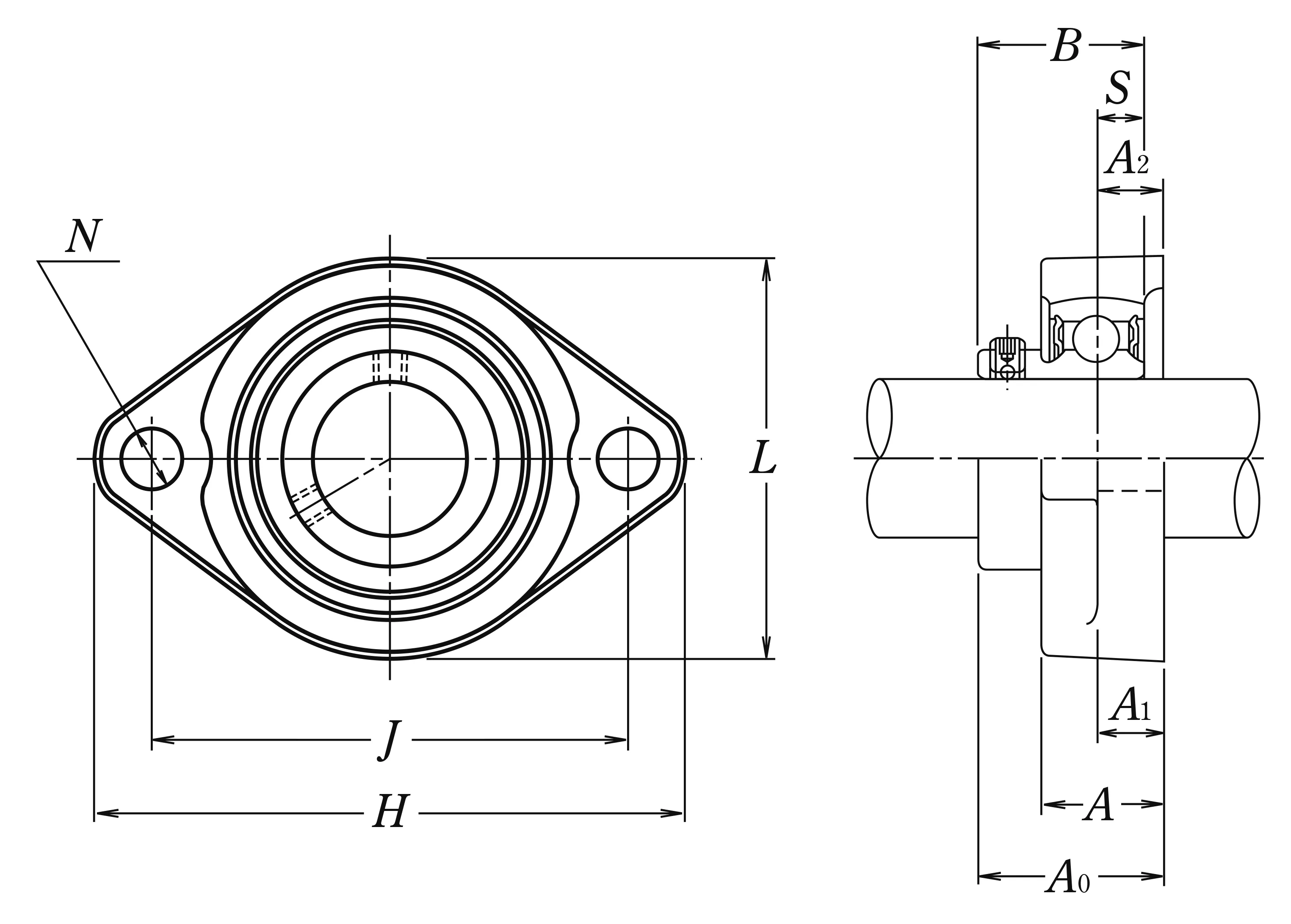

Nominal Dimensions

d	12	mm	Bore diameter
L,L1	56	mm	Overall height
J	63.5	mm	Distance between attachment bolts
N	7	mm	Diameter of attachment bolt hole
A2	9.5	mm	Flange width
A1	9.5	mm	Flange width
A	18	mm	Base width
A0	25.5	mm	Overall width
B,B1,B2	22	mm	Width of inner ring
H	81	mm	Overall length
S	6	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M6

Bolt size

Basic Load Ratings

Cr	9.6	kN	Basic dynamic load rating
C0r	4.6	kN	Basic static load rating

Mass

mass

0.3

kg

Mass approx.
