AELPFL201-

Designations

AELPFL201

Included products

Bearing	AS201		Bearing
Housing	PFL203		Housing

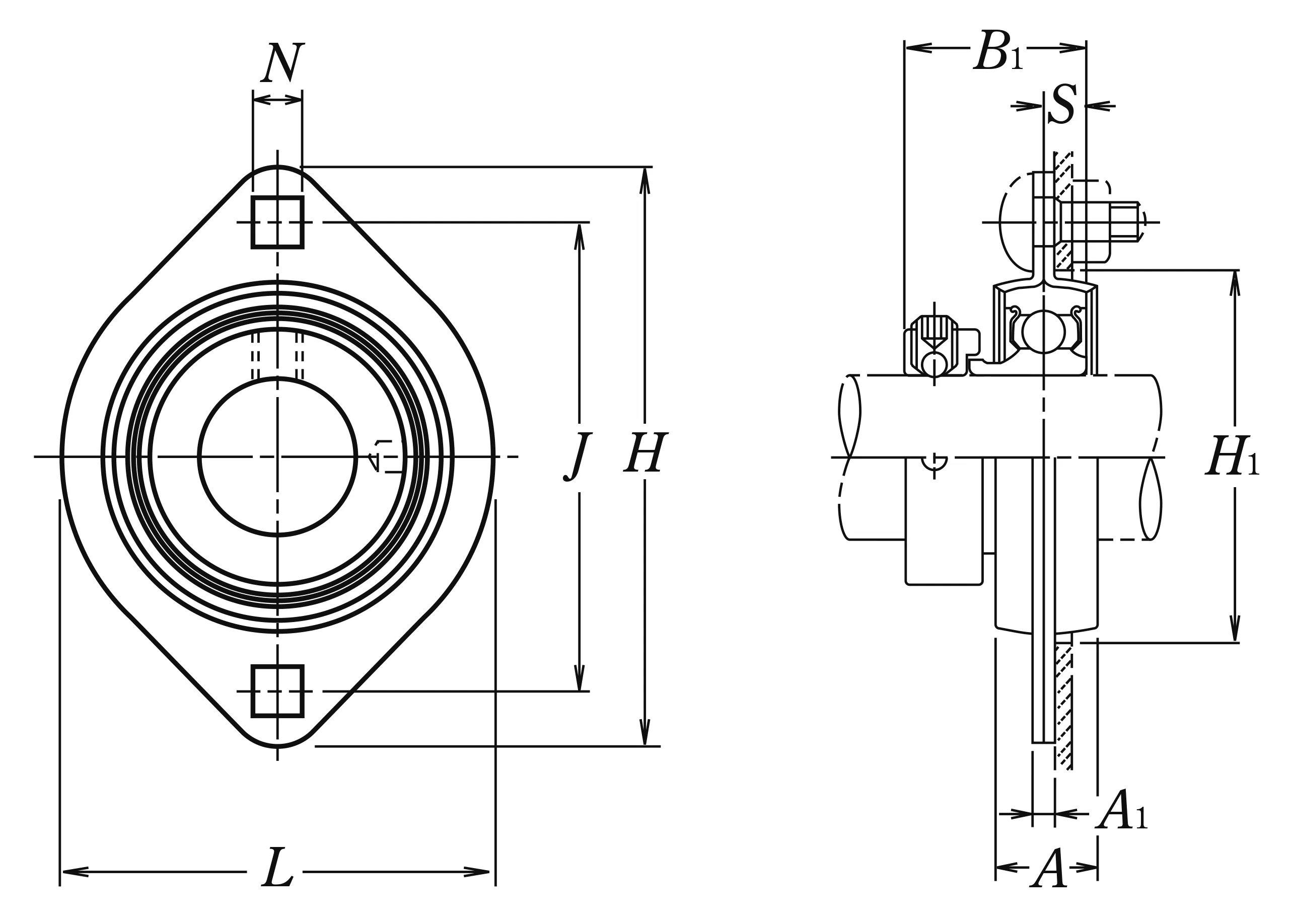

Nominal Dimensions

d	12	mm	Bore diameter
L,L1	59	mm	Overall height
H	81	mm	Height of spherical seat centre
J	63.5	mm	Distance between attachment bolts
N	7.1	mm	Diameter of attachment bolt hole
A1	4	mm	Flange width
A	14	mm	Base width
B,B1,B2	28.6	mm	Width of inner ring
H1	49	mm	Abutment diameter
S	6.5	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M 6

Bolt size

Permissible housing load

CR

2.7

kN

Radial

Basic Load Ratings

Cr	9.6	kN	Basic dynamic load rating
C0r	4.6	kN	Basic static load rating

Mass

mass

0.2

kg

Mass approx.
