UEL321D1 Series-

Designations

UEL321D1

Included products

Bearing

UEL321D1

Bearing

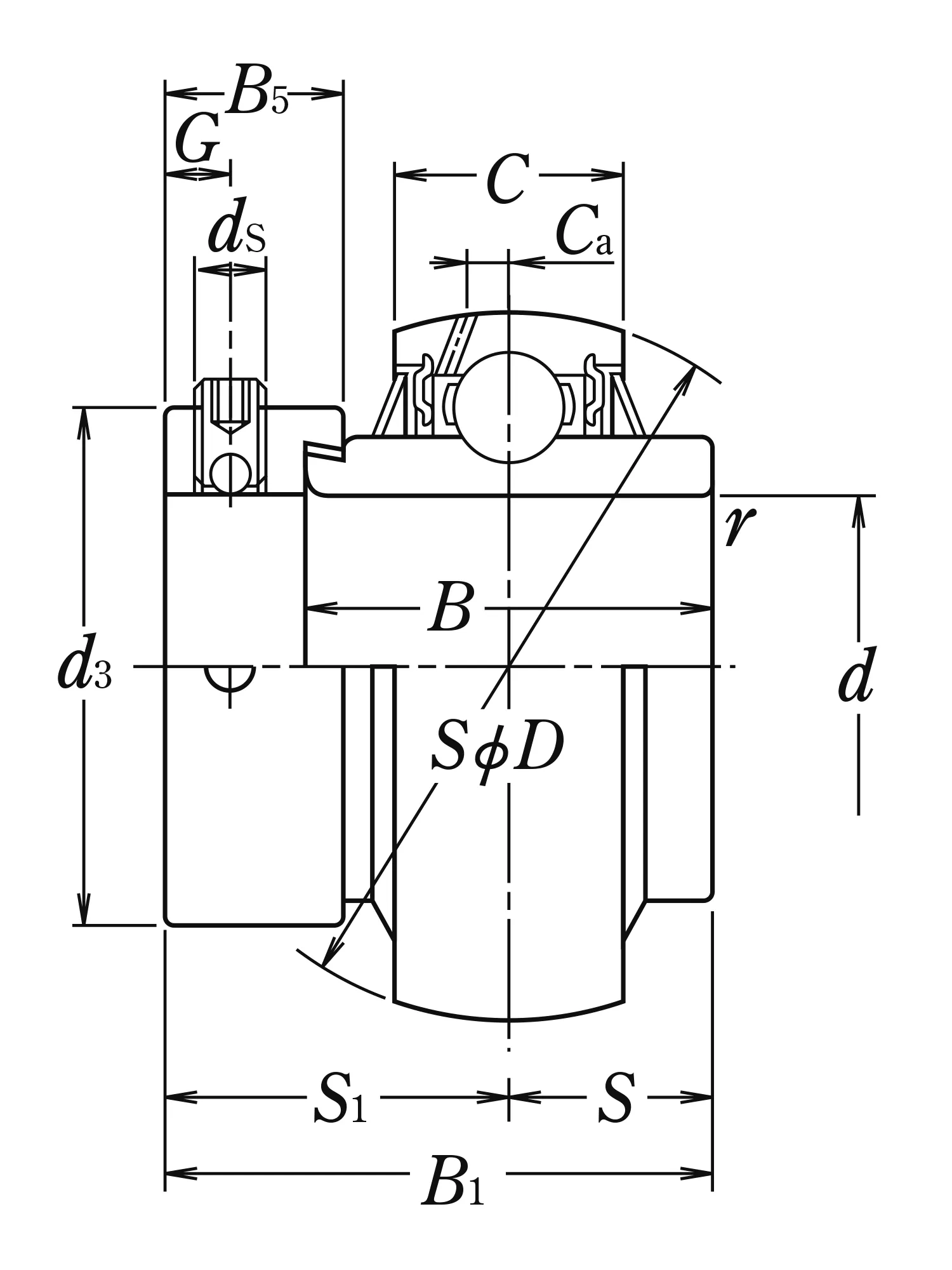

Nominal Dimensions

d	105	mm	Bore diameter
D	225	mm	Outside diameter
B1	139.7	mm	Overall bearing width
B,B4	104.8	mm	Width of inner ring
C	57	mm	Outer ring width
r(min.)	3	mm	Chamfer dimension
S1	91.3	mm	Distance from locking device side face to raceway centre
G	17.5	mm	Distance face to thread centre
ds	M20×1.5		Set screw
Ca	14.6	mm	Distance from oil hole centre to raceway centre
d3	157	mm	Outside diameter of locking collar
B5	42.8	mm	Width of locking collar

Basic Load Ratings

Cr	184	kN	Basic dynamic load rating
C0r	153	kN	Basic static load rating

Mass

Mass approx.

14.6

kg

Mass approx.
