UCS315 Series-

Designations

UCS315

Included products

Bearing

UCS315

Bearing

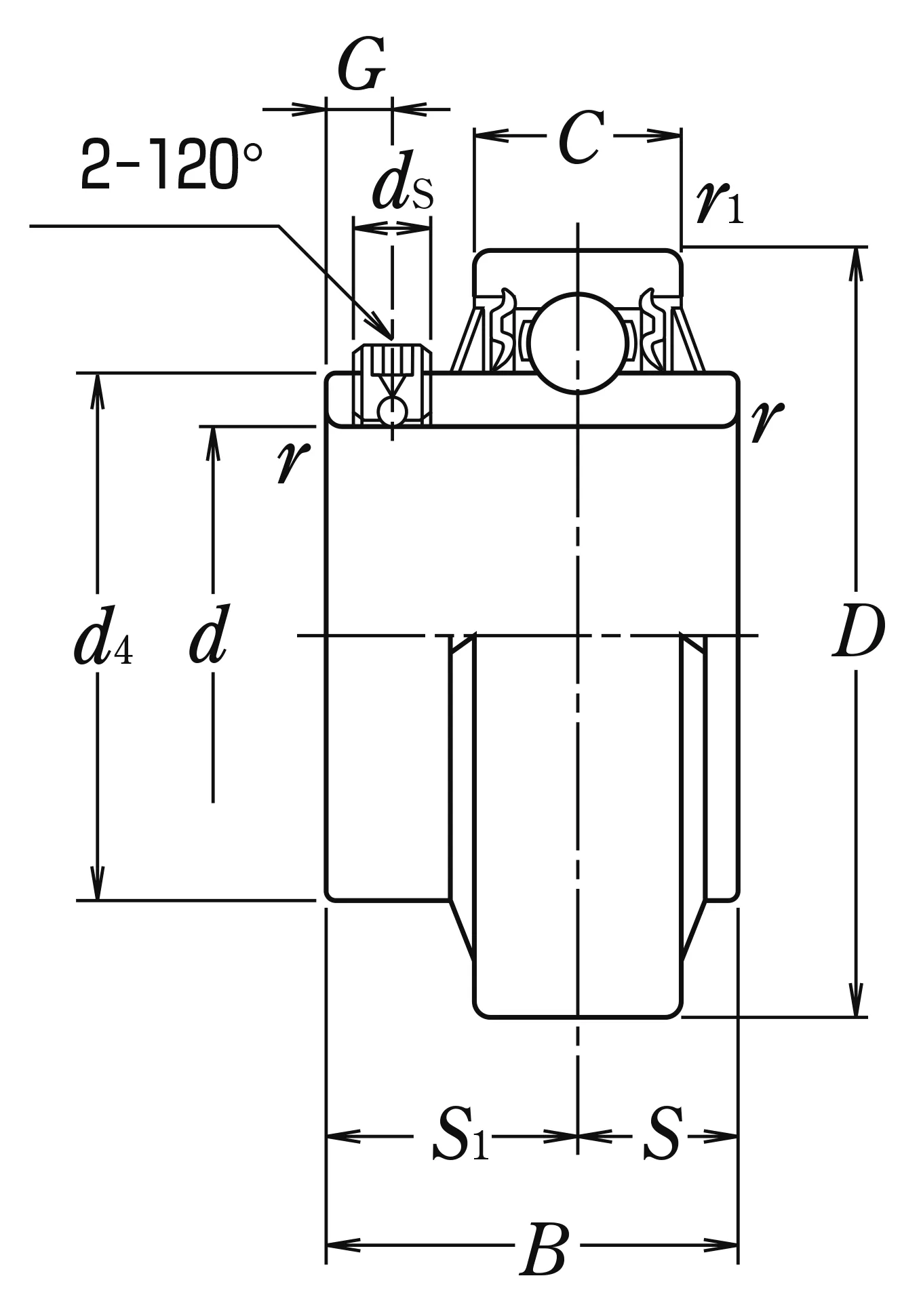

Nominal Dimensions

d	75	mm	Bore diameter
D	160	mm	Outside diameter
B,B4	82	mm	Width of inner ring
C	43	mm	Outer ring width
r(min.)	2.5	mm	Chamfer dimension
r1(min.)	2	mm	Chamfer dimension
S1	50	mm	Distance from locking device side face to raceway centre
G	14	mm	Distance face to thread centre
ds	M14×1.5		Set screw
d4	101.3	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	113	kN	Basic dynamic load rating
C0r	77	kN	Basic static load rating

Mass

Mass approx.

4.88

kg

Mass approx.
