UEL315D1 Series-

Designations

UEL315D1

Included products

Bearing

UEL315D1

Bearing

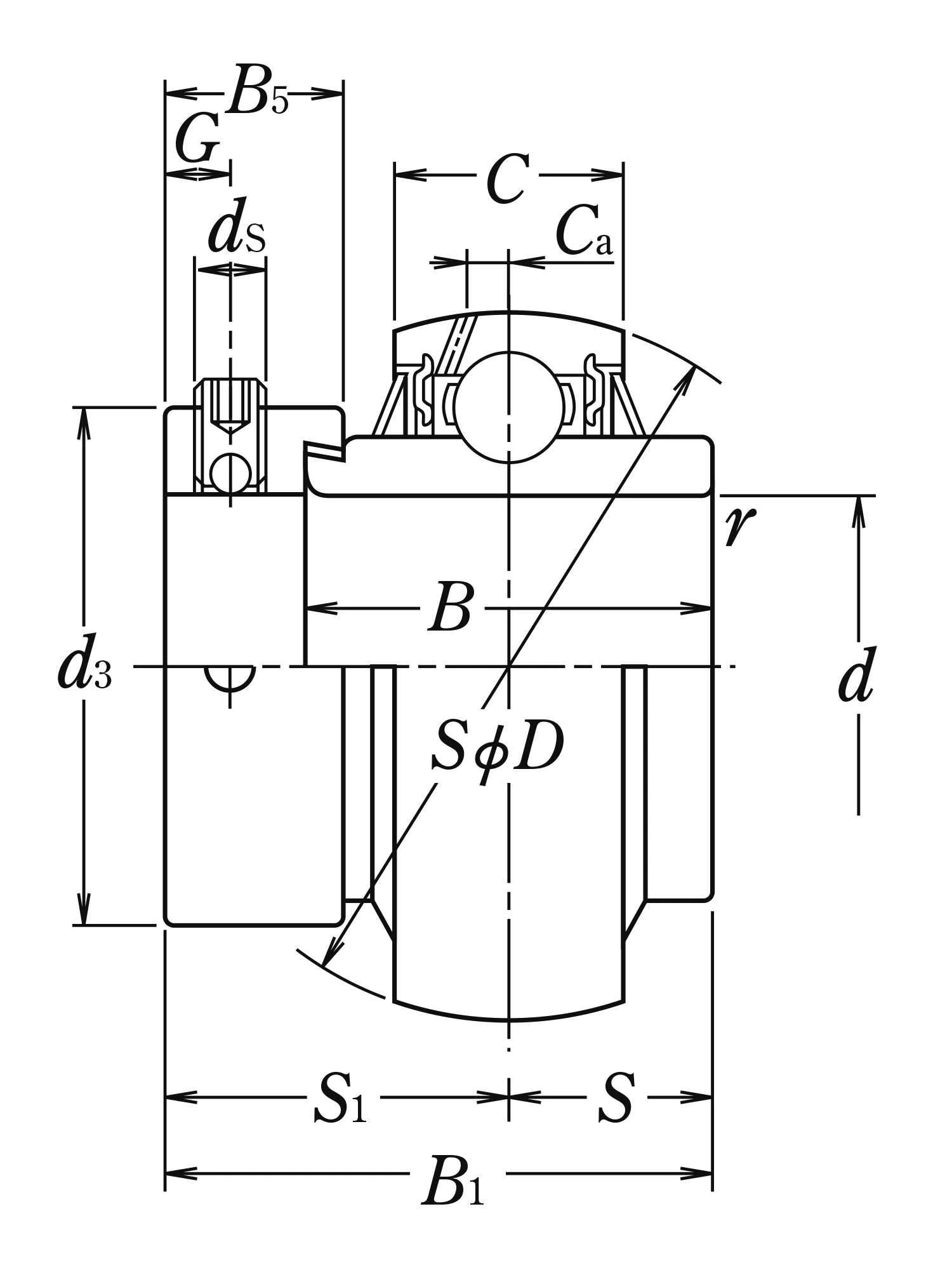

Nominal Dimensions

d	75	mm	Bore diameter
D	160	mm	Outside diameter
B1	100	mm	Overall bearing width
B,B4	74.6	mm	Width of inner ring
C	43	mm	Outer ring width
r(min.)	2.5	mm	Chamfer dimension
S1	62.7	mm	Distance from locking device side face to raceway centre
G	12.7	mm	Distance face to thread centre
ds	M16×1.5		Set screw
Ca	10.5	mm	Distance from oil hole centre to raceway centre
d3	113	mm	Outside diameter of locking collar
B5	31.8	mm	Width of locking collar

Basic Load Ratings

Cr	113	kN	Basic dynamic load rating
C0r	77	kN	Basic static load rating

Mass

Mass approx.

5.34

kg

Mass approx.
