UELS314 Series-

Designations

UELS314

Included products

Bearing

UELS314

Bearing

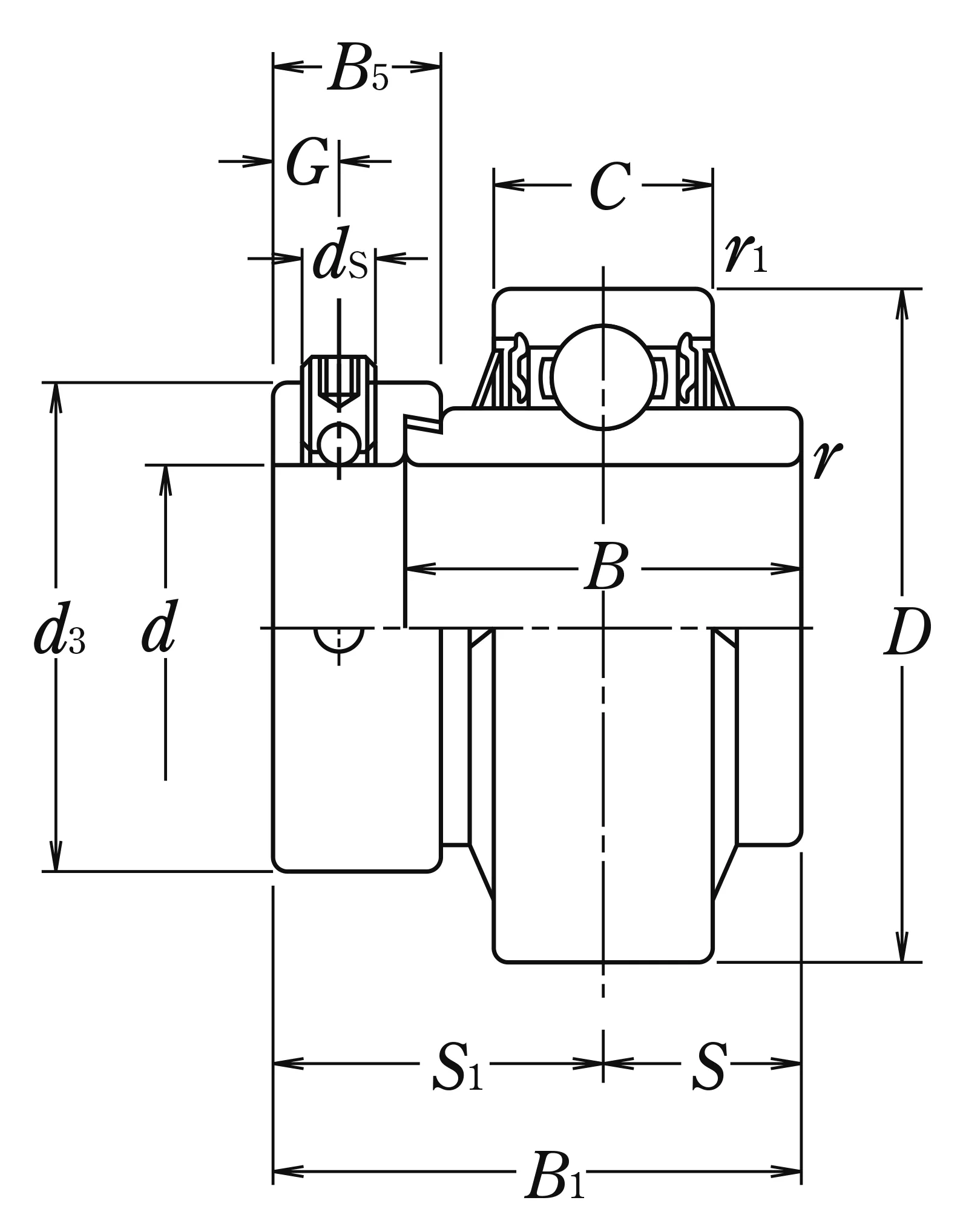

Nominal Dimensions

d	70	mm	Bore diameter
D	150	mm	Outside diameter
B1	92.1	mm	Overall bearing width
B,B4	68.3	mm	Width of inner ring
C	41	mm	Outer ring width
r(min.)	2.5	mm	Chamfer dimension
r1(min.)	2	mm	Chamfer dimension
S1	57.95	mm	Distance from locking device side face to raceway centre
G	10.3	mm	Distance face to thread centre
ds	M12×1.5		Set screw
d3	102	mm	Outside diameter of locking collar
B5	30.2	mm	Width of locking collar

Basic Load Ratings

Cr	104	kN	Basic dynamic load rating
C0r	68	kN	Basic static load rating

Mass

Mass approx.

4.54

kg

Mass approx.
