UEL312D1 Series-

Designations

UEL312D1

Included products

Bearing

UEL312D1

Bearing

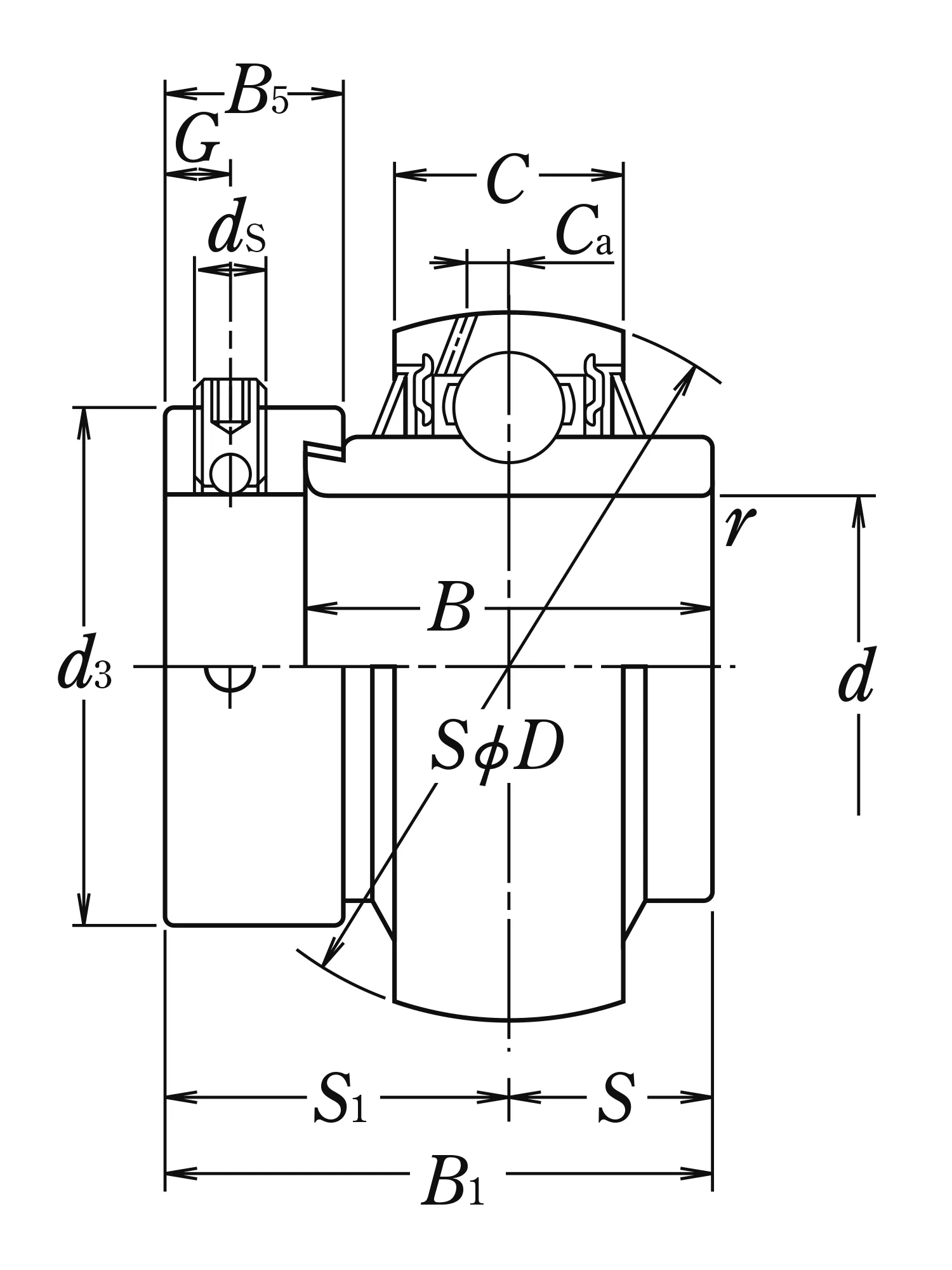

Nominal Dimensions

d	60	mm	Bore diameter
D	130	mm	Outside diameter
B1	79.4	mm	Overall bearing width
B,B4	61.9	mm	Width of inner ring
C	36	mm	Outer ring width
r(min.)	2.5	mm	Chamfer dimension
S1	48.45	mm	Distance from locking device side face to raceway centre
G	8.7	mm	Distance face to thread centre
ds	M10×1.25		Set screw
Ca	9	mm	Distance from oil hole centre to raceway centre
d3	89	mm	Outside diameter of locking collar
B5	23.9	mm	Width of locking collar

Basic Load Ratings

Cr	82	kN	Basic dynamic load rating
C0r	52	kN	Basic static load rating

Mass

Mass approx.

2.94

kg
