UKS312 Series-

Designations

UKS312

Included products

Bearing

UKS312

Bearing

Associated products

Adapter sleeve

H2312X

Adapter sleeve

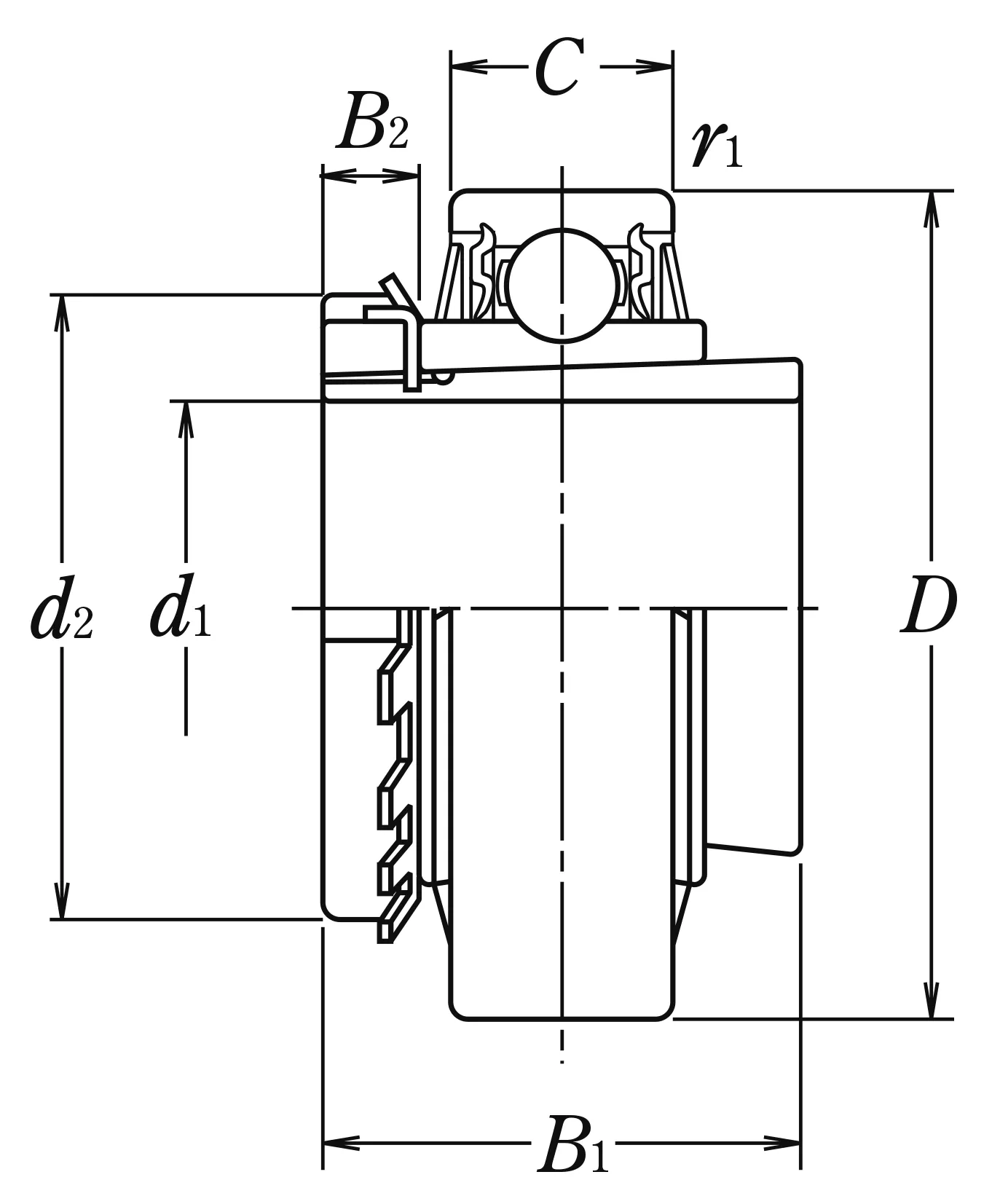

Nominal Dimensions

d	60	mm	Bore diameter
D	130	mm	Outside diameter
B1	62	mm	Overall bearing width
d1	55	mm	Sleeve bore diameter
d2	80	mm	Outside diameter lock nut
B,B4	47	mm	Width of inner ring
B2	13	mm	Width lock nut including lock washer
C	36	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
d4	82.7	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	82	kN	Basic dynamic load rating
C0r	52	kN	Basic static load rating

Mass

Mass approx.

2.63

kg
