UK212D1 Series-

Designations

UK212D1

Included products

Bearing

UK212D1

Bearing

Associated products

Adapter sleeve

H2312X

Adapter sleeve

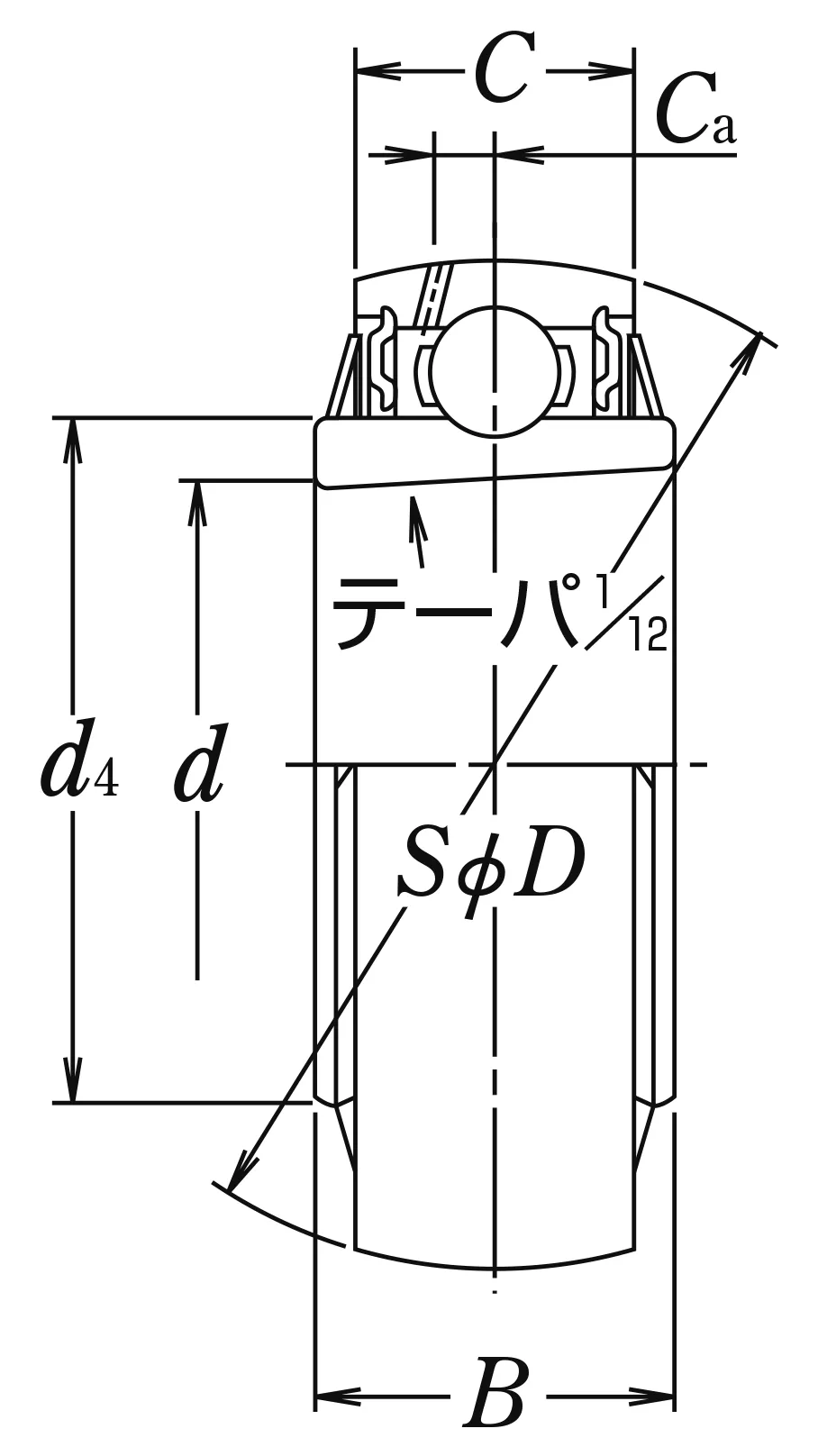

Nominal Dimensions

d	60	mm	Bore diameter
D	110	mm	Outside diameter
B1	62	mm	Overall bearing width
d1	55	mm	Sleeve bore diameter
d2	80	mm	Outside diameter lock nut
B,B4	38	mm	Width of inner ring
B2	13	mm	Width lock nut including lock washer
C	27	mm	Outer ring width
Ca	7.3	mm	Distance from oil hole centre to raceway centre
d4	77	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	52.5	kN	Basic dynamic load rating
C0r	36	kN	Basic static load rating

Mass

Mass approx.

1.54

kg

Mass approx.
