UCS211LN Series-

Designations

UCS211LN

Included products

Bearing

UCS211LN

Bearing

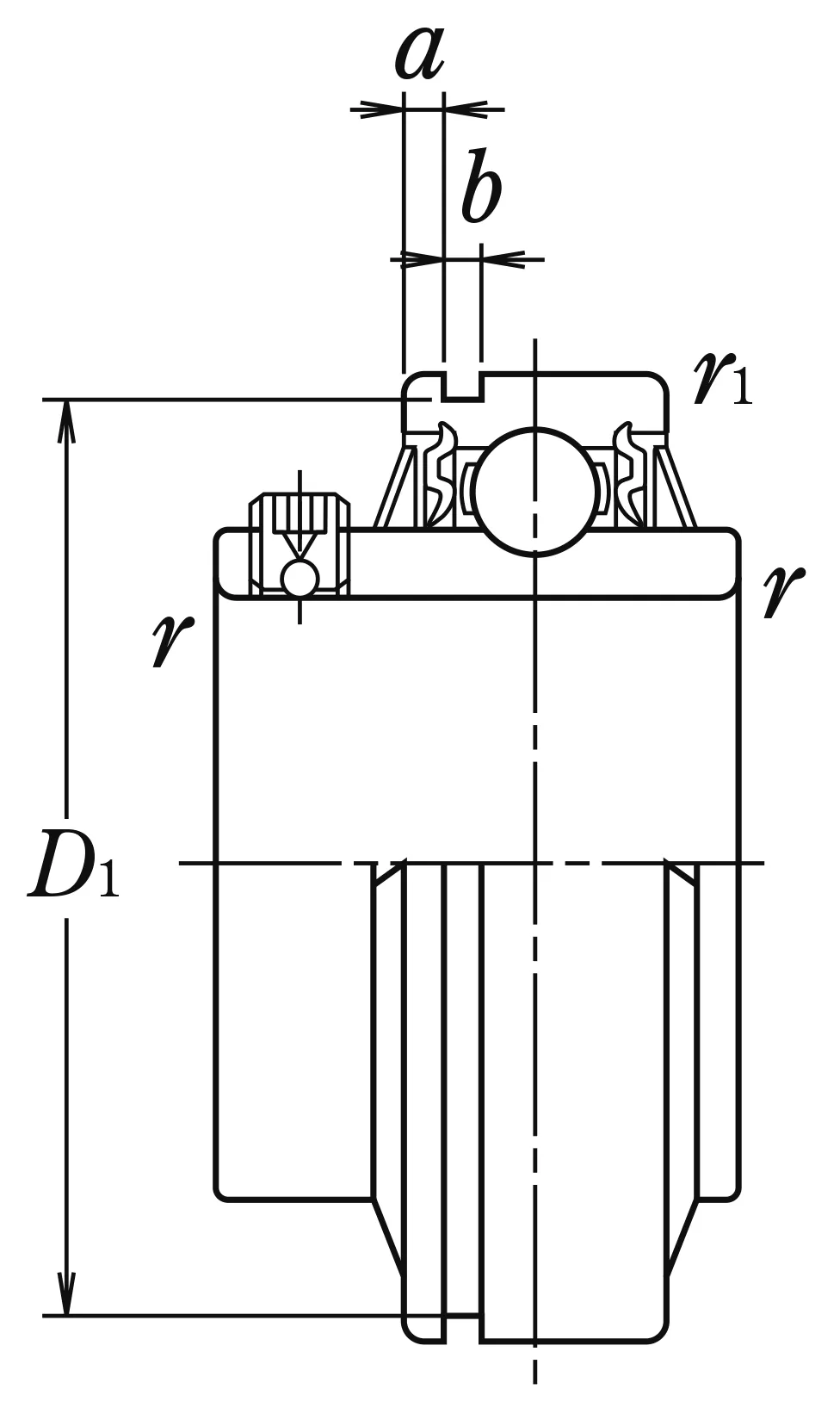

Nominal Dimensions

d	55	mm	Bore diameter
D	100	mm	Outside diameter
B,B4	55.6	mm	Width of inner ring
C	25	mm	Outer ring width
r(min.)	2	mm	Chamfer dimension
r1(min.)	2	mm	Chamfer dimension
S1	33.4	mm	Distance from locking device side face to raceway centre
G	9	mm	Distance face to thread centre
ds	M 8×1		Set screw
d4	69	mm	Outside diameter of inner ring
D1	96.8	mm	Diameter of snap ring groove
a	4.4	mm	Distance outer ring from side face to snap ring groove
b	2.85	mm	Width of snap ring groove

Basic Load Ratings

Cr	43.5	kN	Basic dynamic load rating
C0r	29.2	kN	Basic static load rating

Mass

Mass approx.

1.06

kg
