UK211D1 Series-

Designations

UK211D1

Included products

Bearing

UK211D1

Bearing

Associated products

Adapter sleeve

H2311X

Adapter sleeve

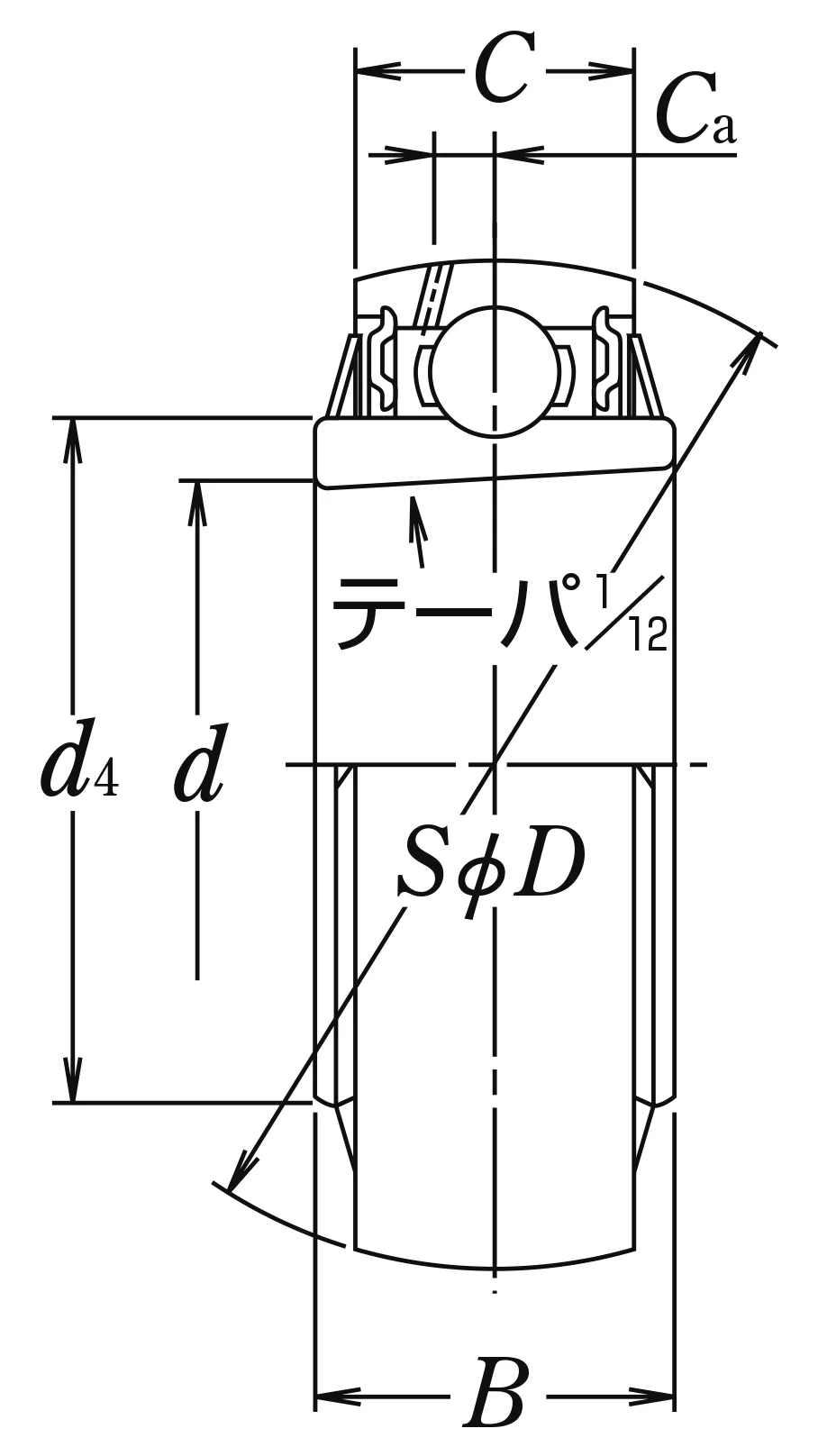

Nominal Dimensions

d	55	mm	Bore diameter
D	100	mm	Outside diameter
B1	59	mm	Overall bearing width
d1	50	mm	Sleeve bore diameter
d2	75	mm	Outside diameter lock nut
B,B4	35	mm	Width of inner ring
B2	12	mm	Width lock nut including lock washer
C	25	mm	Outer ring width
Ca	6.5	mm	Distance from oil hole centre to raceway centre
d4	69	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	43.5	kN	Basic dynamic load rating
C0r	29.2	kN	Basic static load rating

Mass

Mass approx.

1.22

kg
