UCS207LN Series-

Designations

UCS207LN

Included products

Bearing

UCS207LN

Bearing

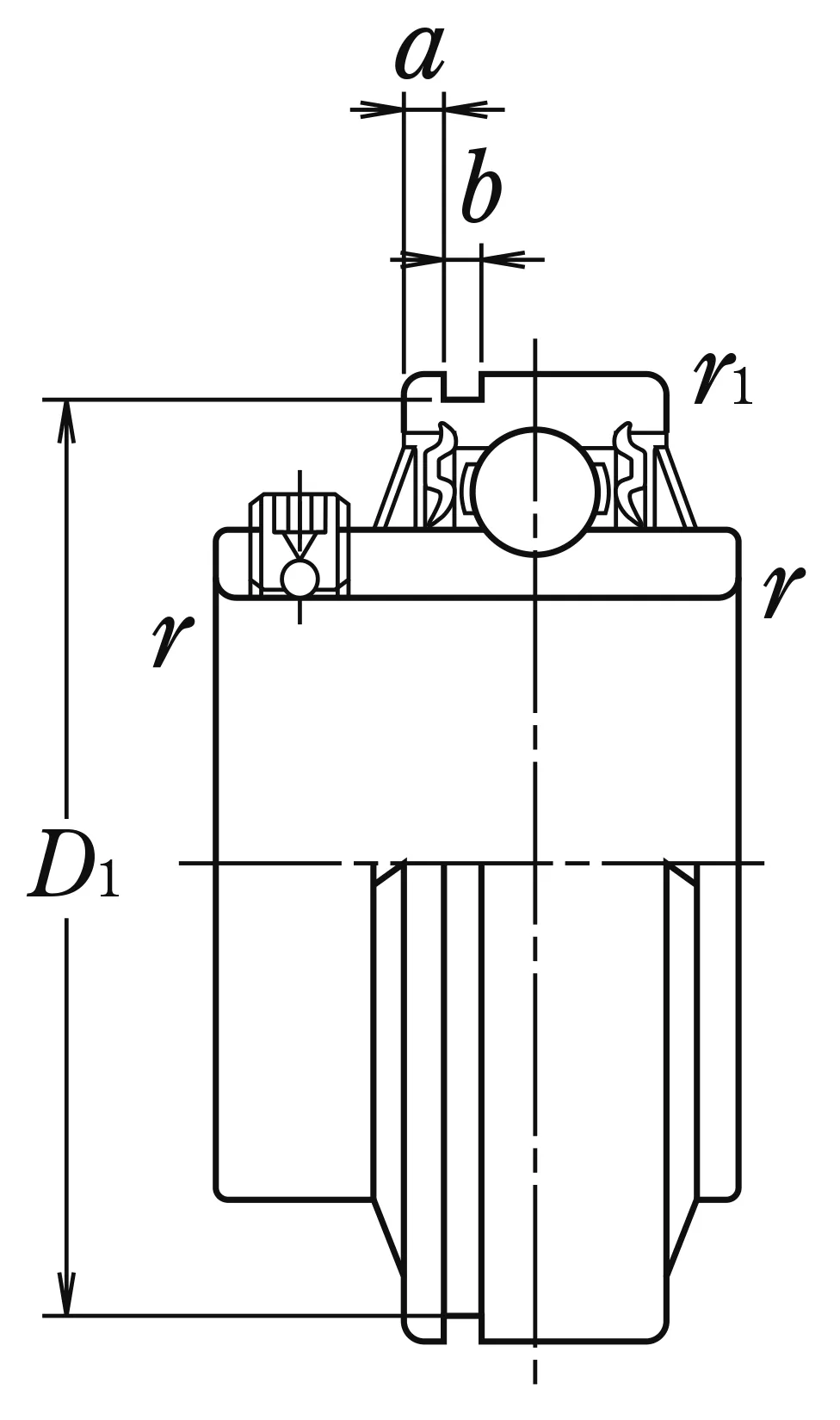

Nominal Dimensions

d	35	mm	Bore diameter
D	72	mm	Outside diameter
B,B4	42.9	mm	Width of inner ring
C	20	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
r1(min.)	1.5	mm	Chamfer dimension
S1	25.4	mm	Distance from locking device side face to raceway centre
G	6	mm	Distance face to thread centre
ds	M 6×0.75		Set screw
d4	46.8	mm	Outside diameter of inner ring
D1	68.81	mm	Diameter of snap ring groove
a	3.3	mm	Distance outer ring from side face to snap ring groove
b	2.05	mm	Width of snap ring groove

Basic Load Ratings

Cr	25.7	kN	Basic dynamic load rating
C0r	15.3	kN	Basic static load rating

Mass

Mass approx.

0.48

kg

Mass approx.
