UK207D1 Series-

Designations

UK207D1

Included products

Bearing

UK207D1

Bearing

Associated products

Adapter sleeve

H2307X

Adapter sleeve

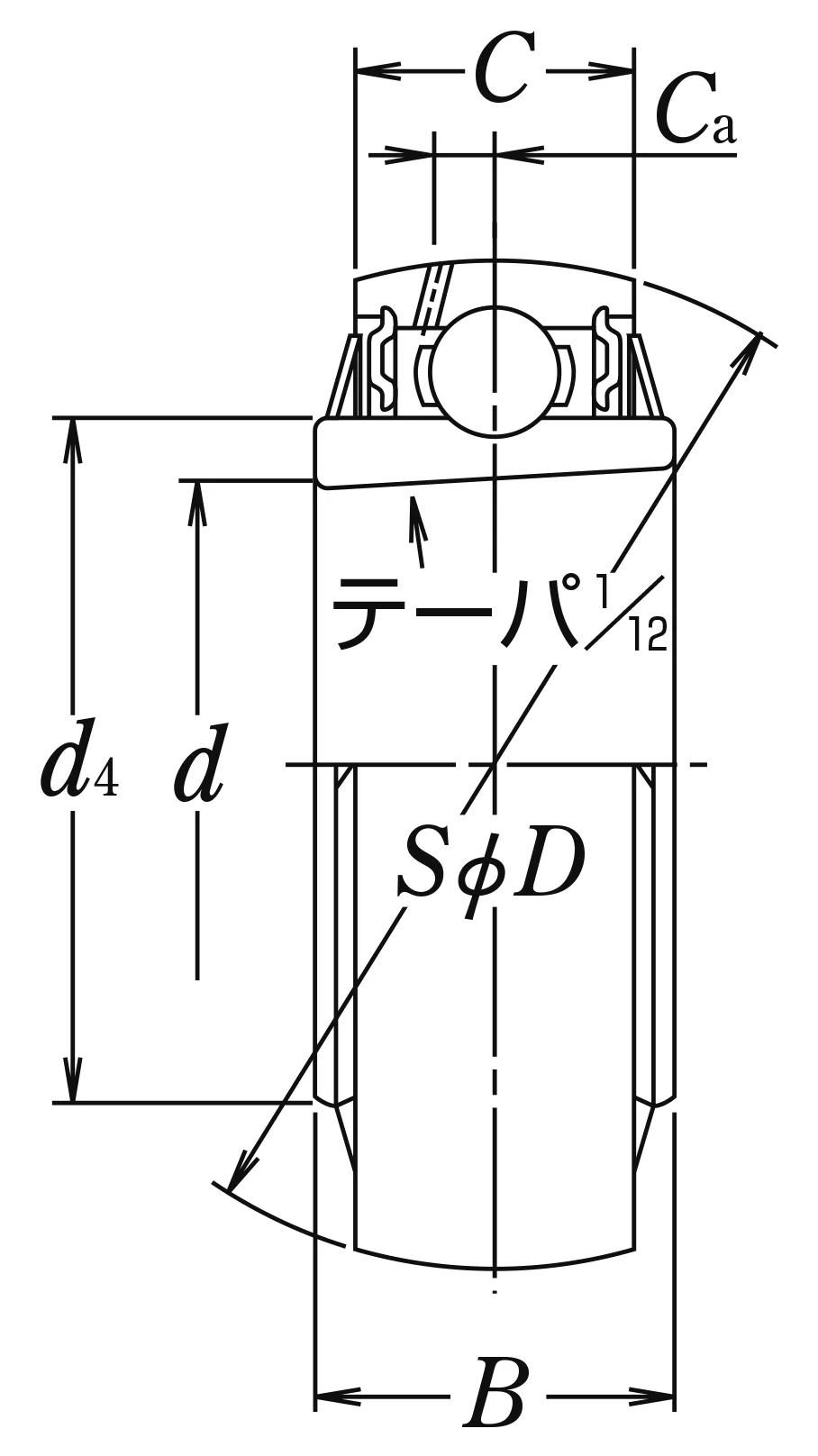

Nominal Dimensions

d	35	mm	Bore diameter
D	72	mm	Outside diameter
B1	43	mm	Overall bearing width
d1	30	mm	Sleeve bore diameter
d2	52	mm	Outside diameter lock nut
B,B4	29	mm	Width of inner ring
B2	9	mm	Width lock nut including lock washer
C	20	mm	Outer ring width
Ca	5.4	mm	Distance from oil hole centre to raceway centre
d4	46.8	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	25.7	kN	Basic dynamic load rating
C0r	15.3	kN	Basic static load rating

Mass

Mass approx.

0.55

kg

Mass approx.
